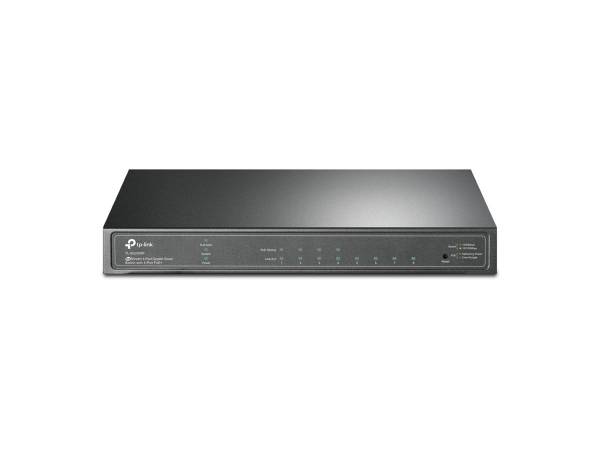

TP-LINK JETSTREAM 8-PORT GIGABIT SMART SWITCH 6657827
SKU
6657827
CA$129.99
JetStream 8-Port Gigabit Smart Switch with 4-Port PoE+.8 10/100/1000 Mbps RJ45 Ports (Ports 1-4 Support 802.3at/af PoE+).L2/L3/L4 QoS and IGMP snooping.Up to 62W total PoE power budget.Integrated into the Omada SDN platform.Cloud access and Omada app man
Category: Network Adapters
- Primary Information
Product Description: TP-Link JetStream TL-SG2008P V3 - switch - 8 ports - smart Device Type: Switch - 8 ports - smart Subtype: Gigabit Ethernet Ports: 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+) Power Over Ethernet (PoE): PoE+ PoE Budget: 62 W Performance: Bandwidth: 16 Gbps ¦ Packet forwarding rate: 11.90 Mpps ¦ Packet buffer size: 4.1 Mbit Capacity: Priority queues: 8 ¦ VLAN groups: 4000 ¦ IP router interfaces: 16 ¦ Static routes: 32 ¦ ACL entries: 230 ¦ IP source guard entries: 253 ¦ IPv6 source guard entries: 183 ¦ MAC addresses per port: 16 ¦ Binding entries: 512 MAC Address Table Size: 8K entries Jumbo Frame Support: 9KB Routing Protocol: IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, DHCP, RSTP, RADIUS Features: Flow control, auto-negotiation, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DHCP snooping, ACL support, QoS, MLD snooping, Cable Diagnostics Function, DLDP support, fanless, LACP support, LLDP support, DHCP relay, Port Security, MIB, GVRP, NDP, port isolation, CoS, SP, 802.1x authentication, cloud managed, DSCP support, Storm Control, IP source guard, ARP inspection, Link Aggregation, scheduler, dual image support, SDN, AAA, LLDP-MED, ZTP, BPDU Filter, WRR, loopback detection, BPDU protection Compliant Standards: IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ab (LLDP) Dimensions (WxDxH): 8.2 in x 5 in x 1 in System Requirements: UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10 - General
Device Type: Switch - 8 ports - smart Enclosure Type: Desktop, wall-mountable Subtype: Gigabit Ethernet Ports: 4 x 10/100/1000 + 4 x 10/100/1000 (PoE+) Power Over Ethernet (PoE): PoE+ PoE Budget: 62 W Performance: Bandwidth: 16 Gbps ¦ Packet forwarding rate: 11.90 Mpps ¦ Packet buffer size: 4.1 Mbit Capacity: Priority queues: 8 ¦ VLAN groups: 4000 ¦ IP router interfaces: 16 ¦ Static routes: 32 ¦ ACL entries: 230 ¦ IP source guard entries: 253 ¦ IPv6 source guard entries: 183 ¦ MAC addresses per port: 16 ¦ Binding entries: 512 MAC Address Table Size: 8K entries Jumbo Frame Support: 9KB Routing Protocol: IGMPv2, IGMP, IGMPv3, MLDv2, MLD, MSTP, RSTP, STP Remote Management Protocol: SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, DHCP, RSTP, RADIUS Encryption Algorithm: MD5, SSL, SSL 3.0, PEAP, TLS 1.2, EAP-TLS, EAP-TTLS Authentication Method: Secure Shell (SSH), RADIUS, PAP, Secure Shell v.2 (SSH2), Extensible Authentication Protocol (EAP), EAP-TLS, EAP-TTLS Features: Flow control, auto-negotiation, BOOTP support, auto-uplink (auto MDI/MDI-X), IGMP snooping, Syslog support, DoS attack prevention, port mirroring, DHCP snooping, ACL support, QoS, MLD snooping, Cable Diagnostics Function, DLDP support, fanless, LACP support, LLDP support, DHCP relay, Port Security, MIB, GVRP, NDP, port isolation, CoS, SP, 802.1x authentication, cloud managed, DSCP support, Storm Control, IP source guard, ARP inspection, Link Aggregation, scheduler, dual image support, SDN, AAA, LLDP-MED, ZTP, BPDU Filter, WRR, loopback detection, BPDU protection Compliant Standards: IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3af, IEEE 802.3at, IEEE 802.1ab (LLDP) RAM: 256 MB Flash Memory: 32 MB Status Indicators: Status - Expansion / Connectivity
Interfaces: 4 x 1000Base-T RJ-45 ¦ 4 x 1000Base-T RJ-45 PoE+ - 30 W - Power
Power Device: External power adapter Power Provided: DC 53.5 V - 1.31 A Power Consumption Operational: 73.8 Watt Power Consumption Stand by: 2.8 Watt - Miscellaneous
Included Accessories: Rubber feet Compliant Standards: FCC, RoHS - Software / System Requirements
OS Required: UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/10 - Dimensions & Weight
Width: 8.2 in Depth: 5 in Height: 1 in - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 90% RH (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F Humidity Range Storage: 5 - 90% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | TP-LINK |
|---|---|
| UNSPSC | 43201404 |
| Part# | TPL-SG2008P |
| MFG Part# | SG2008P |
| UPC | 845973030971 |
| Device Type | Switch - 8 ports - smart |
| Enclosure Type | Desktop, wall-mountable |
| Remote Management Protocol | DHCP, HTTP, HTTPS, RADIUS, RMON 1, RMON 2, RMON 3, RMON 9, RSTP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, Telnet, TFTP |
| Encryption Algorithm | EAP-TLS, EAP-TTLS, MD5, PEAP, SSL, SSL 3.0, TLS 1.2 |
