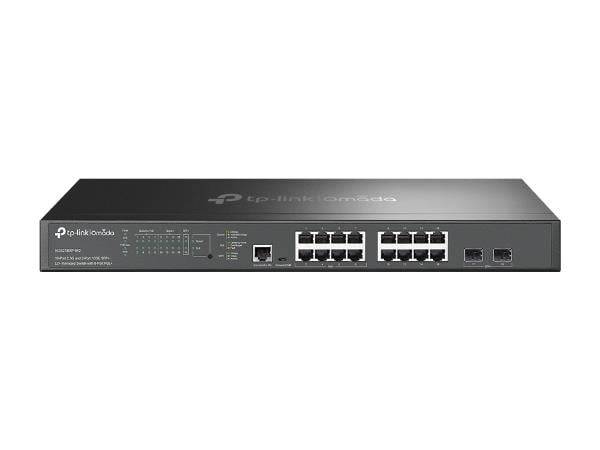

TP-LINK OMADA 16-PORT 2.5G AND 2-PORT 10GE SFP L2 MANAGED SWITCH WITH 8-PORT POE SPEC: 8 2.5 GBPS POE PORTS & 8 2.5 GBPS NON-POE PORTS; 2 10 GBPS SFP 7357212
SKU
7357212
CA$599.99
OMADA 16-PORT 2.5G AND 2-PORT 10GE SFP L2 MANAGED SWITCH WITH 8-PORT POE SPEC: 8 2.5 GBPS POE PORTS & 8 2.5 GBPS NON-POE PORTS; 2 10 GBPS SFP SLOTS UPLINK; 240 W POE BUDGET;
Category: Hubs & Switches
- Primary Information
Product Description: TP-Link Omada SG3218XP-M2 V1.6 - switch - 16 ports - managed - rack-mountable Device Type: Switch - 16 ports - L2+ - managed Enclosure Type: Rack-mountable Subtype: 2.5 Gigabit Ethernet Ports: 8 x 2.5GBase-T + 8 x 100/1000/2.5G (PoE+) + 2 x 10Gb Ethernet SFP+ (uplink) Power Over Ethernet (PoE): PoE+ PoE Budget: 240 W Performance: Switching capacity: 120 Gbps ¦ Packet forwarding rate: 89.28 Mpps ¦ Packet buffer size: 12 Mbit Capacity: Priority queues: 8 ¦ IPv6 interfaces: 32 ¦ IPv4 interfaces: 32 ¦ Static routes: 48 ¦ Static ARP entries: 128 ¦ Total link aggregation groups: 8 ¦ Multicast filters: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 256 ¦ IP MAC port binding entries: 512 ¦ IPv4 source guard entries: 100 ¦ IPv6 MAC port binding entries: 512 ¦ IPv6 source guard entries: 100 ¦ MAC addresses per port: 64 MAC Address Table Size: 16K entries Jumbo Frame Support: 9KB Routing Protocol: Static IP routing, STP, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2 Remote Management Protocol: IPv4, IPv6, RSTP, TCP/IP, UDP, DHCP, CLI, SSH, SSH-2, ICMP, Telnet, SNMP, HTTP, HTTPS, TFTP, MIB, RMON, RMON 2, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 3, RMON 9, OAM Features: 2 fans, CoS, QoS, DSCP prioritization, queue scheduling support, SP, WRR, rate limit, proxy ARP, ARP support, DHCP server, DHCP relay, VLAN support, Link Aggregation, BPDU Filter, TC/Root protection, loopback detection, flow control, HOL Blocking Prevention, port mirroring, IGMP snooping, fast leave, IGMP filtering, MLD snooping, MVR, device discovery, firmware upgradable, schedule reboot, GVRP, Voice VLAN, ACL support, ToS, DHCP snooping, ARP inspection, ND detection, DoS attack prevention, Port Security, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Guest VLAN, MAB, AAA, port isolation, path MTU discovery, cloud managed, ZTP, BOOTP support, LLDP-MED, Cable Diagnostics Function, EEE, SNTP support, system log, IPMB Compliant Standards: IEEE 802.3at, IEEE 802.3af, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3ah Power: AC 100-240 V (50/60 Hz) Dimensions (WxDxH): 17.3 in x 7.1 in x 1.7 in System Requirements: Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux - General
Device Type: Switch - 16 ports - L2+ - managed Enclosure Type: Rack-mountable Subtype: 2.5 Gigabit Ethernet Ports: 8 x 2.5GBase-T + 8 x 100/1000/2.5G (PoE+) + 2 x 10Gb Ethernet SFP+ (uplink) Power Over Ethernet (PoE): PoE+ PoE Budget: 240 W Performance: Switching capacity: 120 Gbps ¦ Packet forwarding rate: 89.28 Mpps ¦ Packet buffer size: 12 Mbit Capacity: Priority queues: 8 ¦ IPv6 interfaces: 32 ¦ IPv4 interfaces: 32 ¦ Static routes: 48 ¦ Static ARP entries: 128 ¦ Total link aggregation groups: 8 ¦ Multicast filters: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 256 ¦ IP MAC port binding entries: 512 ¦ IPv4 source guard entries: 100 ¦ IPv6 MAC port binding entries: 512 ¦ IPv6 source guard entries: 100 ¦ MAC addresses per port: 64 MAC Address Table Size: 16K entries Jumbo Frame Support: 9KB Routing Protocol: Static IP routing, STP, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2 Remote Management Protocol: IPv4, IPv6, RSTP, TCP/IP, UDP, DHCP, CLI, SSH, SSH-2, ICMP, Telnet, SNMP, HTTP, HTTPS, TFTP, MIB, RMON, RMON 2, SNMP 1, SNMP 2c, SNMP 3, RMON 1, RMON 3, RMON 9, OAM Encryption Algorithm: SSL 3.0, TLS 1.2 Authentication Method: TACACS+, RADIUS, Secure Shell (SSH), Secure Shell v.2 (SSH2) Features: 2 fans, CoS, QoS, DSCP prioritization, queue scheduling support, SP, WRR, rate limit, proxy ARP, ARP support, DHCP server, DHCP relay, VLAN support, Link Aggregation, BPDU Filter, TC/Root protection, loopback detection, flow control, HOL Blocking Prevention, port mirroring, IGMP snooping, fast leave, IGMP filtering, MLD snooping, MVR, device discovery, firmware upgradable, schedule reboot, GVRP, Voice VLAN, ACL support, ToS, DHCP snooping, ARP inspection, ND detection, DoS attack prevention, Port Security, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, Guest VLAN, MAB, AAA, port isolation, path MTU discovery, cloud managed, ZTP, BOOTP support, LLDP-MED, Cable Diagnostics Function, EEE, SNTP support, system log, IPMB Compliant Standards: IEEE 802.3at, IEEE 802.3af, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.3x, IEEE 802.1Q, IEEE 802.1x, IEEE 802.1ab (LLDP), IEEE 802.3ah Status Indicators: Power, system, link/activity, PoE max, fan, SFP+ - Expansion / Connectivity
Interfaces: 8 x 2.5GBase-T RJ-45 PoE+ - 30 W ¦ 8 x 2.5GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+ uplink ¦ 1 x console RJ-45 ¦ 1 x console (micro-USB) - Power
Power Device: Internal power supply Voltage Required: AC 100-240 V (50/60 Hz) - Miscellaneous
Included Accessories: Rubber feet Rack Mounting Kit: Included Compliant Standards: FCC, RoHS - Software / System Requirements
OS Required: Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux - Dimensions & Weight
Width: 17.3 in Depth: 7.1 in Height: 1.7 in - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 10 - 90% RH (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F Humidity Range Storage: 5 - 90% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TP-LINK |
|---|---|
| UNSPSC | 43222612 |
| Part# | TPL-SG3218XP-M2 |
| MFG Part# | SG3218XP-M2 |
| UPC | 840030709722 |
| Device Type | Switch - 16 ports - L2+ - managed |
| Enclosure Type | Rack-mountable |
| Remote Management Protocol | CLI, DHCP, HTTP, HTTPS, ICMP, IPv4, IPv6, MIB, OAM, RMON, RMON 1, RMON 2, RMON 3, RMON 9, RSTP, SNMP, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, TCP/IP, Telnet, TFTP, UDP |
| Encryption Algorithm | SSL 3.0, TLS 1.2 |
