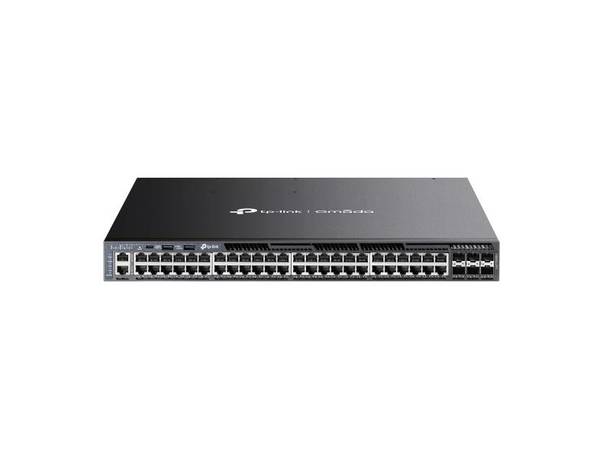

TP-LINK OMADA 48-PORTGIGABIT STACKABLE L3 MANAGED POE+ SWITCH WITH 6 10GE SFP+ SLOTS PORT 8014261
SKU
8014261
CA$2,499.99
OMADA 48-PORTGIGABIT STACKABLE L3 MANAGED POE+ SWITCH WITH 6 10GE SFP+ SLOTS PORT: 48 GIGABIT POE+ RJ45 PORTS, 6 10G SFP+ SLOTS, RJ45/TYPE C USB CONSOLE PORT, MANAGEMENT PORT, 2 USB2.0 PORTS SPEC: 802.3AT/AF, MAX 1440 W POE POWER (DEPEND ON POWER SUPPLY MODULE), 1U 19-INCH RACK-MOUNTABLE STEEL CASE FEATURE: INTEGRATION WITH OMADA SDN CONTROLLER, STACKING, RIP, OSPF, VRRP, ECMP, PIM-DM, STATIC ROUTING, DHCP SERVER, DHCP RELAY, ERPS, RSPAN, QINQ, OAM, SFLOW, DDM, 802.1Q VLAN, STP/RSTP/MSTP, IGMP SNOOPING, 802.1P/DSCP, QOS, ACL, 802.1X, RADIUS/TACACS+ AUTHENTICATION, LACP, CLI, SNMP, DUAL IMAGE/CONFIGURATION, IPV6, DUAL REDUNDANT POWER SUPPLIES
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: SG6654XHP Form Factor: Rack-Mountable Connectivity Technology: Wired Data Transfer Rate: 10 Gbps Networking / Ports Qty: 59 Data Link Protocol: Gigabit Ethernet Networking Compliant Standards: 802.1q, 802.1p, 802.1ab Media Layer Supported: Layer 2, Layer 3 Power / Device Type: Power Supply Power / Installed Qty: 2 Uplink Port: 6 Max Power Consumption: 1767.7 Watt Power / Voltage Required: 100-240 VAC, 50/60 Hz - Network
Power Over Ethernet (PoE) Support: Y PoE Power Consumption: 1440 W MAC Address Table Size: 32 K Jumbo Frame Support: 9 KB Remote Management Protocol: SNMP; CLI; RMON Routing Protocol: RIP, OSPF, Static Routing Authentication Method: RADIUS, 802.1X, Mac base SFP+ Ports: 6 Interfaces: 10/100/1000 Mbps PoE+ RJ45, 10G SFP+, USB 2.0, RJ45 Console, USB Type-C Console, RJ45 Management - Interfaces / Ports
Interfaces: 10/100/1000 Mbps PoE+ RJ45, 10G SFP+, USB 2.0, RJ45 Console, USB Type-C Console, RJ45 Management SFP+ Ports: 6 - Dimensions&Miscellaneous
Width: 17.3 Inch Depth: 16.5 Inch Height: 1.7 Inch - Special Feature
Min Operating Temperature: 0 Celsius Max Operating Temperature: 45 Celsius Min Storage Temperature: -40 Celsius Max Storage Temperature: 70 Celsius COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TP-LINK |
|---|---|
| UNSPSC | 43222612 |
| Part# | TPL-SG6654XHP |
| MFG Part# | SG6654XHP |
| UPC | 840030705915 |
| Network Device Type | Switch |
| Power / Installed Qty | 2 |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10 Gbps |
| Form Factor | Rack-Mountable |
| Networking / Ports Qty | 59 |
| Data Link Protocol | Gigabit Ethernet |
| Power / Device Type | Power Supply |
| Remote Management Protocol | CLI, RMON, SNMP |
