TP-LINK OMADA 5-PORT GIGABIT SMART SWITCH WITH 1-PORT POE IN AND 4-PORT POE OUT SPEC: UP TO 200 M POE DISTANCE 7357210

SKU
7357210

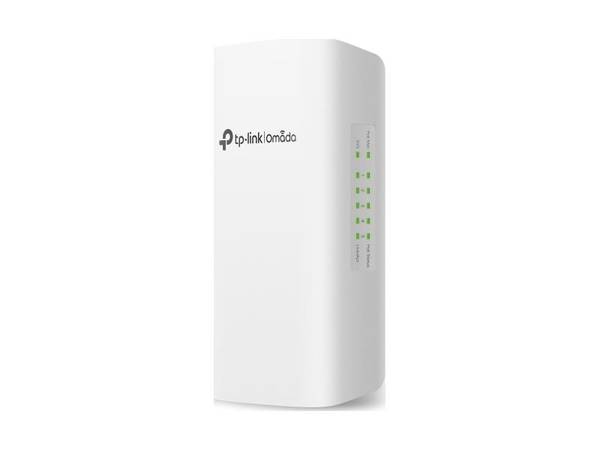

main product photo
CA$119.99
OMADA 5-PORT GIGABIT SMART SWITCH WITH 1-PORT POE IN AND 4-PORT POE OUT SPEC: UP TO 200 M POE DISTANCE





buy now pay later
Category: Hubs & Switches
  • Primary Information
    Product Description: TP-Link Omada SG2005P-PD V1.6 - switch - 5 ports - smart
    Device Type: Switch - 5 ports - smart
    Subtype: Gigabit Ethernet
    Ports: 1 x 10/100/1000 (PoE++) + 4 x 10/100/1000 (PoE+)
    Power Over Ethernet (PoE): PoE++
    PoE Budget: 64 W
    Max Transfer Distance: 330 ft
    Performance: Switching capacity: 10 Gbps ¦ Packet forwarding rate: 7.44 Mpps ¦ Packet buffer size: 4.1 Mbit
    Capacity: Priority queues: 8 ¦ IPv6 interfaces: 32 ¦ IPv4 interfaces: 32 ¦ Static routes: 32 ¦ Multicast groups: 511 ¦ Total link aggregation groups: 8 ¦ Multicast filters: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 12 ¦ Access control entries: 230 ¦ IPv6 MAC port binding entries: 512 ¦ IPv4 source guard entries: 253 ¦ IPv6 source guard entries: 183 ¦ MAC addresses per port: 64
    MAC Address Table Size: 8K entries
    Jumbo Frame Support: 9KB
    Routing Protocol: Static IP routing, STP, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2
    Remote Management Protocol: RSTP, IPv4, IPv6, TCP/IP, UDP, SSH, DHCP, HTTPS, CLI, MIB, RADIUS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP, SNMP 2c, SNMP 3, SSH-2, ICMP, Telnet, HTTP, TFTP
    Features: Weatherproof, waterproof, dustproof, UV resistant casing, 4KV lightning protection (common mode), cloud managed, ACL support, VLAN support, QoS, SDN, fanless, long range PoE+ up to 200m, CoS, DSCP prioritization, queue scheduling support, SP, WRR, bandwidth control, rate limit, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DHCP server, DHCP relay, proxy ARP, Link Aggregation, BPDU Filter, loopback detection, flow control, port mirroring, DLDP support, LLDP-MED, IGMP snooping, MVR, Multicast filtering function, MLD snooping, device discovery, firmware upgradable, network monitoring, schedule reboot, path MTU discovery, GVRP, Voice VLAN, AAA, DHCP snooping, ND detection, DoS attack prevention, port isolation, IPMB, ZTP, BOOTP support, Cable Diagnostics Function, EEE, SNTP support, system log, Guest VLAN, MAB, Port Security, ARP inspection, fast leave, ToS, reset button
    Compliant Standards: IEEE 802.3af, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.1ab (LLDP)
    Dimensions (WxDxH): 3.9 in x 1.5 in x 6.7 in
    System Requirements: Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux
  • General
    Device Type: Switch - 5 ports - smart
    Enclosure Type: Pole-mountable, wall-mountable
    Subtype: Gigabit Ethernet
    Ports: 1 x 10/100/1000 (PoE++) + 4 x 10/100/1000 (PoE+)
    Power Over Ethernet (PoE): PoE++
    PoE Budget: 64 W
    Max Transfer Distance: 330 ft
    Performance: Switching capacity: 10 Gbps ¦ Packet forwarding rate: 7.44 Mpps ¦ Packet buffer size: 4.1 Mbit
    Capacity: Priority queues: 8 ¦ IPv6 interfaces: 32 ¦ IPv4 interfaces: 32 ¦ Static routes: 32 ¦ Multicast groups: 511 ¦ Total link aggregation groups: 8 ¦ Multicast filters: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 12 ¦ Access control entries: 230 ¦ IPv6 MAC port binding entries: 512 ¦ IPv4 source guard entries: 253 ¦ IPv6 source guard entries: 183 ¦ MAC addresses per port: 64
    MAC Address Table Size: 8K entries
    Jumbo Frame Support: 9KB
    Routing Protocol: Static IP routing, STP, RSTP, MSTP, IGMP, IGMPv2, IGMPv3, MLD, MLDv2
    Remote Management Protocol: RSTP, IPv4, IPv6, TCP/IP, UDP, SSH, DHCP, HTTPS, CLI, MIB, RADIUS, RMON 1, RMON 2, RMON 3, RMON 9, SNMP, SNMP 2c, SNMP 3, SSH-2, ICMP, Telnet, HTTP, TFTP
    Encryption Algorithm: SSL 3.0, TLS 1.2
    Authentication Method: PAP, EAP-MD5, Secure Shell (SSH), Secure Shell v.2 (SSH2), RADIUS
    Features: Weatherproof, waterproof, dustproof, UV resistant casing, 4KV lightning protection (common mode), cloud managed, ACL support, VLAN support, QoS, SDN, fanless, long range PoE+ up to 200m, CoS, DSCP prioritization, queue scheduling support, SP, WRR, bandwidth control, rate limit, Broadcast Storm Control, Multicast Storm Control, Storm Control, Unicast Storm Control, Unknown Storm Control, DHCP server, DHCP relay, proxy ARP, Link Aggregation, BPDU Filter, loopback detection, flow control, port mirroring, DLDP support, LLDP-MED, IGMP snooping, MVR, Multicast filtering function, MLD snooping, device discovery, firmware upgradable, network monitoring, schedule reboot, path MTU discovery, GVRP, Voice VLAN, AAA, DHCP snooping, ND detection, DoS attack prevention, port isolation, IPMB, ZTP, BOOTP support, Cable Diagnostics Function, EEE, SNTP support, system log, Guest VLAN, MAB, Port Security, ARP inspection, fast leave, ToS, reset button
    Compliant Standards: IEEE 802.3af, IEEE 802.3bt, IEEE 802.3at, IEEE 802.3i, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3ad (LACP), IEEE 802.3x, IEEE 802.1D, IEEE 802.1s, IEEE 802.1w, IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.1ab (LLDP)
    Status Indicators: System, PoE max, link/activity, PoE activity
  • Expansion / Connectivity
    Interfaces: 1 x 10/100/1000 Base-T RJ-45 PoE++ - 30 W ¦ 4 x 10/100/1000 Base-T RJ-45 PoE+
  • Miscellaneous
    Included Accessories: Mounting kit
    Compliant Standards: IP55, FCC, RoHS
  • Software / System Requirements
    OS Required: Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux
  • Dimensions & Weight
    Width: 3.9 in
    Depth: 1.5 in
    Height: 6.7 in
  • Environmental Parameters
    Min Operating Temperature: -40 °F
    Max Operating Temperature: 140 °F
    Humidity Range Operating: 10 - 90% RH (non-condensing)
    Min Storage Temperature: -40 °F
    Max Storage Temperature: 158 °F
    Humidity Range Storage: 5 - 90% RH (non-condensing)
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43222612
More Information
BRANDSTP-LINK
UNSPSC43222612
Part#TPL-SG2005P-PD
MFG Part#SG2005P-PD
UPC840030709487
Max Transfer Distance330 ft
Device TypeSwitch - 5 ports - smart
Enclosure TypePole-mountable, wall-mountable
Remote Management ProtocolCLI, DHCP, HTTP, HTTPS, ICMP, IPv4, IPv6, MIB, RADIUS, RMON 1, RMON 2, RMON 3, RMON 9, RSTP, SNMP, SNMP 2c, SNMP 3, SSH, SSH-2, TCP/IP, Telnet, TFTP, UDP
Encryption AlgorithmSSL 3.0, TLS 1.2
