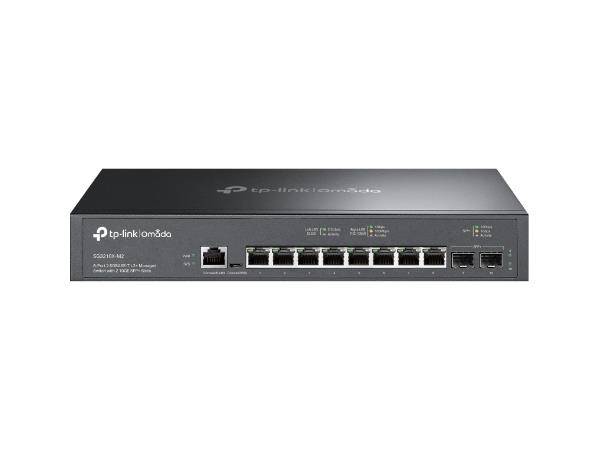

TP-LINK OMADA 8-PORT 2.5G L2 MANAGED SWITCH SPEC: 8 2.5 GBPS RJ45 PORTS; 2 10 GBPS SFP SLOTS UPLINK; 7357216
SKU
7357216
CA$289.99
OMADA 8-PORT 2.5G L2 MANAGED SWITCH SPEC: 8 2.5 GBPS RJ45 PORTS; 2 10 GBPS SFP SLOTS UPLINK;
Category: Hubs & Switches
- Primary Information
Product Description: TP-Link Omada SG3210X-M2 V1 - switch - 8 ports - managed - rack-mountable Device Type: Switch - 8 ports - L2+ - managed Enclosure Type: Rack-mountable Subtype: 2.5 Gigabit Ethernet Ports: 8 x 2.5GBase-T + 2 x 10Gb Ethernet SFP+ Performance: Switching capacity: 80 Gbps ¦ Packet forwarding rate: 59.52 Mpps ¦ Packet buffer size: 12 Mbit Capacity: Priority queues: 8 ¦ IPv6 interfaces: 32 ¦ IPv4 interfaces: 32 ¦ Static routes: 48 ¦ Static ARP entries: 128 ¦ Total link aggregation groups: 8 ¦ Multicast filters: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 256 ¦ IP MAC port binding entries: 512 ¦ IPv4 source guard entries: 100 ¦ IPv6 MAC port binding entries: 512 ¦ MAC addresses per port: up to 64 MAC Address Table Size: 16K entries Jumbo Frame Support: 9KB Routing Protocol: Static IP routing, STP, RSTP, MSTP, L2PT, PPPoE, IGMP, IGMPv2, IGMPv3, MLD, MLDv2 Remote Management Protocol: DHCP, CLI, Telnet, SSH, SNMP, RSTP, OAM, HTTP, HTTPS, MIB, RMON, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3 Features: Non-blocking architecture, ZTP, IP-MAC binding, ACL support, Port Security, DoS, Storm Control, DHCP snooping, 802.1x authentication, QoS, IGMP snooping, SDN, Advanced QoS, TCP/UDP proxy, VLAN ID filtering, flow control, IGMP throttling, DLDP support, MLD snooping, DHCPv6 snooping, fanless, queue scheduling support, SP, WRR, bandwidth control, flow mirroring, rate limit, ARP support, DHCP server, DHCP relay, Link Aggregation, Static Link Aggregation, BPDU Filter, loopback detection, port mirroring, fast leave, MVR, GVRP, Voice VLAN, ARP inspection, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, AAA, port isolation, path MTU discovery, Cable Diagnostics Function, EEE, system log Compliant Standards: IEEE 802.1x, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP) Power: AC 100-240 V (50/60 Hz) Dimensions (WxDxH): 11.6 in x 7.1 in x 1.7 in System Requirements: Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux - General
Device Type: Switch - 8 ports - L2+ - managed Enclosure Type: Rack-mountable, desktop Subtype: 2.5 Gigabit Ethernet Ports: 8 x 2.5GBase-T + 2 x 10Gb Ethernet SFP+ Performance: Switching capacity: 80 Gbps ¦ Packet forwarding rate: 59.52 Mpps ¦ Packet buffer size: 12 Mbit Capacity: Priority queues: 8 ¦ IPv6 interfaces: 32 ¦ IPv4 interfaces: 32 ¦ Static routes: 48 ¦ Static ARP entries: 128 ¦ Total link aggregation groups: 8 ¦ Multicast filters: 256 ¦ Layer 2 multicast filtering entries per profile: 16 ¦ VLAN groups: 4000 ¦ MAC VLAN address entries: 256 ¦ IP MAC port binding entries: 512 ¦ IPv4 source guard entries: 100 ¦ IPv6 MAC port binding entries: 512 ¦ MAC addresses per port: up to 64 MAC Address Table Size: 16K entries Jumbo Frame Support: 9KB Routing Protocol: Static IP routing, STP, RSTP, MSTP, L2PT, PPPoE, IGMP, IGMPv2, IGMPv3, MLD, MLDv2 Remote Management Protocol: DHCP, CLI, Telnet, SSH, SNMP, RSTP, OAM, HTTP, HTTPS, MIB, RMON, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 1, SNMP 2c, SNMP 3 Encryption Algorithm: SSL 3.0, TLS 1.2 Authentication Method: RADIUS, TACACS+, Secure Shell (SSH), Secure Shell v.2 (SSH2) Features: Non-blocking architecture, ZTP, IP-MAC binding, ACL support, Port Security, DoS, Storm Control, DHCP snooping, 802.1x authentication, QoS, IGMP snooping, SDN, Advanced QoS, TCP/UDP proxy, VLAN ID filtering, flow control, IGMP throttling, DLDP support, MLD snooping, DHCPv6 snooping, fanless, queue scheduling support, SP, WRR, bandwidth control, flow mirroring, rate limit, ARP support, DHCP server, DHCP relay, Link Aggregation, Static Link Aggregation, BPDU Filter, loopback detection, port mirroring, fast leave, MVR, GVRP, Voice VLAN, ARP inspection, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, AAA, port isolation, path MTU discovery, Cable Diagnostics Function, EEE, system log Compliant Standards: IEEE 802.1x, IEEE 802.1Q, IEEE 802.3x, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1p, IEEE 802.3ad (LACP), IEEE 802.1D, IEEE 802.1w, IEEE 802.1s, IEEE 802.1ab (LLDP) Status Indicators: Power, system, link/activity, SFP+ - Expansion / Connectivity
Interfaces: 8 x 2.5GBase-T RJ-45 ¦ 2 x 10GBase-X SFP+ ¦ 1 x console RJ-45 ¦ 1 x console (micro-USB) - Power
Power Device: Internal power supply Voltage Required: AC 100-240 V (50/60 Hz) - Miscellaneous
Included Accessories: Rubber feet, power cord Rack Mounting Kit: Included Compliant Standards: FCC, RoHS - Software / System Requirements
OS Required: Microsoft Windows 98SE/2000/NT/XP/Vista/7/8/8.1/10/11, Apple MacOS, Novell NetWare, UNIX, Linux - Dimensions & Weight
Width: 11.6 in Depth: 7.1 in Height: 1.7 in - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 10 - 90% RH (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 158 °F Humidity Range Storage: 5 - 90% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TP-LINK |
|---|---|
| UNSPSC | 43222612 |
| Part# | TPL-SG3210X-M2 |
| MFG Part# | SG3210X-M2 |
| UPC | 840030709524 |
| Device Type | Switch - 8 ports - L2+ - managed |
| Enclosure Type | desktop, Rack-mountable |
| Remote Management Protocol | CLI, DHCP, HTTP, HTTPS, MIB, OAM, RMON, RMON 1, RMON 2, RMON 3, RMON 9, RSTP, SNMP, SNMP 1, SNMP 2c, SNMP 3, SSH, Telnet |
| Encryption Algorithm | SSL 3.0, TLS 1.2 |
