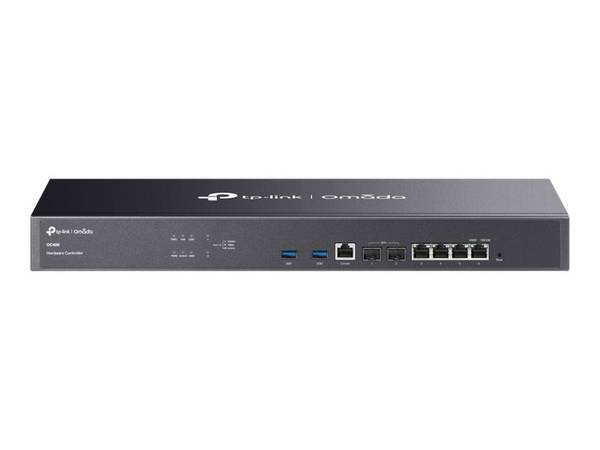

TP-LINK OMADA HARDWARE CONTROLLER 7997621
SKU
7997621
CA$499.99
OMADA HARDWARE CONTROLLER PORT: 2 10G SFP+ SLOTS, 4 10/100/1000 MBPS ETHERNET PORTS, 2 USB 3.0 PORT, 1 RJ45 CONSOLE PORT FEATURE: CLOUD ACCESS, CENTRALIZED MANAGEMENT FOR UP TO 1000 OMADA EAPS, 200 OMADA SWITCHS AND 100 OMADA ROUTERS, MULTI-SITE MANAGEMENT, OMADA APP, METAL CASING, RACK-MOUNTABLE, DUAL REDUNDANT POWER SUPPLIES
Category: Hubs & Switches
- Primary Information
Product Description: TP-Link Omada OC400 V1 - network management device - cloud-managed Device Type: Network management device Form Factor: Rack-mountable Processor: 2.2 GHz RAM: 8 GB Flash Memory: 32 GB Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet Capacity: Maximum number of access points: 1000 ¦ Maximum number of switches: 200 ¦ Maximum number of routers: 100 ¦ Maximum number of clients: 30000 ¦ Maximum number of sites: 100 ¦ Maximum number of accounts: 1000 ¦ Maximum number of local accounts: 500 ¦ Maximum number of cloud accounts: 500 ¦ Maximum number of vouchers: 60000 ¦ Maximum number of local users: 60000 ¦ Maximum number of WLAN groups: 500 ¦ Maximum number of configured SSIDs per each site: 24 ¦ Maximum number of ACL entries (router): 64 ¦ Maximum number of ACL entries (switch): 32 ¦ Maximum number of ACL entries (EAP): 16 ¦ Maximum number of pre-authentication per each site: 96 ¦ Maximum number of reboot schedules per each site: 8 ¦ Maximum number of PoE schedules per each site: 8 ¦ Maximum number of MAC filter groups per each site: 8 ¦ Maximum number of IP groups per each site: 16 ¦ Maximum number of MAC addresses in each MAC filter: 500 ¦ Maximum number of MAC addresses in each MAC filter per controller: 4000 ¦ Maximum number of static routing entries (router): 64 ¦ Maximum number of static routing entries (switch): 32 ¦ Maximum number of policy routing entries per each site: 64 ¦ Maximum number of session limit per each site: 64 ¦ Maximum number of bandwidth control entries per each site: 64 ¦ Maximum number of port forwarding entries per each site: 32 ¦ Maximum number of Radius profiles per each site: 64 Included Accessories: Rubber feet, rack mount kit OS Required: UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 Power: AC 100-240 V (50/60 Hz) Power Redundancy: Yes Dimensions (WxDxH): 17.3 in x 7.1 in x 1.7 in - General
Device Type: Network management device Width: 17.3 in Depth: 7.1 in Height: 1.7 in - Processor / Memory / Storage
Processors Installed: 2.2 GHz RAM: 8 GB DDR4 SDRAM Flash Memory: 32 GB - Networking
Form Factor: Rack-mountable Connectivity Technology: Wired Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet Network / Transport Protocol: PPTP, L2TP, IPSec, DDNS, WireGuard, OpenVPN Remote Management Protocol: SNMP, SSH, RADIUS Cloud-Managed: Yes Capacity: Maximum number of access points: 1000 ¦ Maximum number of switches: 200 ¦ Maximum number of routers: 100 ¦ Maximum number of clients: 30000 ¦ Maximum number of sites: 100 ¦ Maximum number of accounts: 1000 ¦ Maximum number of local accounts: 500 ¦ Maximum number of cloud accounts: 500 ¦ Maximum number of vouchers: 60000 ¦ Maximum number of local users: 60000 ¦ Maximum number of WLAN groups: 500 ¦ Maximum number of configured SSIDs per each site: 24 ¦ Maximum number of ACL entries (router): 64 ¦ Maximum number of ACL entries (switch): 32 ¦ Maximum number of ACL entries (EAP): 16 ¦ Maximum number of pre-authentication per each site: 96 ¦ Maximum number of reboot schedules per each site: 8 ¦ Maximum number of PoE schedules per each site: 8 ¦ Maximum number of MAC filter groups per each site: 8 ¦ Maximum number of IP groups per each site: 16 ¦ Maximum number of MAC addresses in each MAC filter: 500 ¦ Maximum number of MAC addresses in each MAC filter per controller: 4000 ¦ Maximum number of static routing entries (router): 64 ¦ Maximum number of static routing entries (switch): 32 ¦ Maximum number of policy routing entries per each site: 64 ¦ Maximum number of session limit per each site: 64 ¦ Maximum number of bandwidth control entries per each site: 64 ¦ Maximum number of port forwarding entries per each site: 32 ¦ Maximum number of Radius profiles per each site: 64 Status Indicators: Power, link/activity, fan, USB, cloud Features: NAT support, VPN support, URL filtering, firmware upgradable, Access Control List (ACL) support, reset button, bandwidth control, 802.1x authentication, metal housing, schedule PoE, 1 fan, schedule reboot, WLAN scheduling, security slot (Kensington security lock compatible), automatic backups, automatic device discovery Encryption Algorithm: SSL Authentication Method: Secure Shell (SSH), RADIUS, Radio Service Set ID (SSID) Compliant Standards: IEEE 802.1x - Expansion / Connectivity
Interfaces: 2 x 10GBase-X - SFP+ ¦ 4 x 1000Base-T - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 1 x console - RJ-45 - Miscellaneous
Included Accessories: Rubber feet, rack mount kit Cables Included: 1 x network cable Compliant Standards: FCC, RoHS - Power
Power Device: Internal power supply Installed Qty: 2 Max Supported Qty: 2 Power Redundancy: Yes Voltage Required: AC 100-240 V (50/60 Hz) - Software / System Requirements
OS Required: UNIX, Apple MacOS, Novell NetWare, Linux, Microsoft Windows XP / Vista / 7 / 8 / 10 - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 10 - 90% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TP-LINK |
|---|---|
| UNSPSC | 43222612 |
| Part# | TPL-OC400 |
| MFG Part# | OC400 |
| UPC | 810142820028 |
| Device Type | Network management device |
| Connectivity Technology | Wired |
| Form Factor | Rack-mountable |
| Data Link Protocol | 10 Gigabit Ethernet, Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | RADIUS, SNMP, SSH |
| Encryption Algorithm | SSL |
