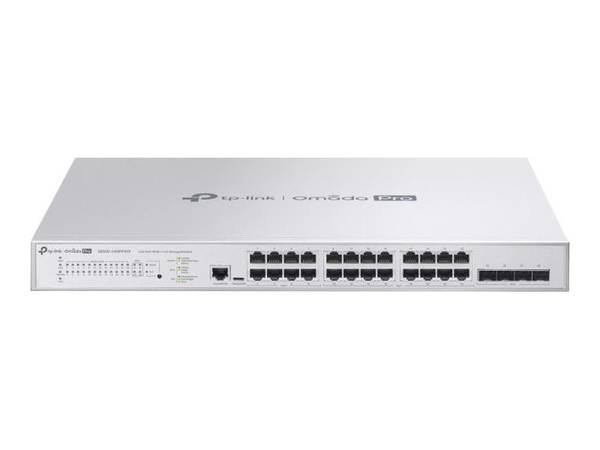

TP-LINK OMADA PRO 24-PORT 2.5GBASE-T AND 4-PORT 10GE SFP+ L2+ MANAGED SWITCH WITH 16-PORT POE+ & 8-PORT POE++ 8028634
SKU
8028634
CA$3,999.99
Omada Pro 24-Port 2.5GBASE-T and 4-Port 10GE SFP+ L2+ Managed Switch with 16-Port PoE+ & 8-Port PoE++ PORT: 24 2.5G RJ45 Ports (8 2.5G PoE++ Ports & 16 2.5G PoE+ Ports), 4 10G SFP+ Slots, RJ45/Micro-USB Console Port SPEC: 802.3bt/at/af, 500 W PoE Power, 1U 19-inch Rack-mountable Steel Case FEATURE: Integration with Omada PRO SDN Controller, Static Routing, OAM, DDM, 802.1Q VLAN, QinQ, STP/RSTP/MSTP, IGMP Snooping, 802.1p/DSCP QoS, ACL, 802.1x, Radius/Tacacs+ Authentication, LACP, CLI, SNMP, Dual Image/Configuration, IPv6
Category: Hubs & Switches
- Primary Information
Network Device Type: Switch Model: S5500-24MPP4XF Form Factor: Rack-Mountable Connectivity Technology: Wired Data Transfer Rate: 10 Gbps Networking / Ports Qty: 30 Data Link Protocol: 10 Gigabit Ethernet Networking Compliant Standards: 802.3bt/at/af Media Layer Supported: Layer 2 Power / Device Type: Power Supply Max Power Consumption: 629.1 Watt Power / Voltage Required: 100-240 V AC~50/60 Hz Features: IEEE 802.3bt/at/af-compliant Power over Ethernet; Secure Networking; Enterprise Switch with 2.5G Ports and 10G Uplink - Network
Power Over Ethernet (PoE) Support: YES PoE Power Consumption: 8 Ports, up to 60 W per port, 16 Ports, up to 30 W per port MAC Address Table Size: 32 K Jumbo Frame Support: 9 KB Remote Management Protocol: IPv6; DHCP; IPv4 Encryption Algorithm: SSL Authentication Method: TACACS+ SFP+ Ports: 4 Interfaces: 24× 2.5 Gbps RJ45 Ports (8× PoE++, 16× PoE+); 4× 10G SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port - Interfaces / Ports
Interfaces: 24× 2.5 Gbps RJ45 Ports (8× PoE++, 16× PoE+); 4× 10G SFP+ Slots; 1× RJ45 Console Port; 1× Micro-USB Console Port SFP+ Ports: 4 - Dimensions&Miscellaneous
Width: 17.3 Inch Depth: 13.0 Inch Height: 1.7 Inch - Special Feature
Min Operating Temperature: 0 CELSIUS Max Operating Temperature: 40 CELSIUS Min Storage Temperature: -40 CELSIUS Max Storage Temperature: 70 CELSIUS COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TP-LINK |
|---|---|
| UNSPSC | 43222612 |
| Part# | TPL-S5500-24MPP4XF |
| MFG Part# | S5500-24MPP4XF |
| UPC | 840030711398 |
| Network Device Type | Switch |
| Connectivity Technology | Wired |
| Data Transfer Rate | 10 Gbps |
| Form Factor | Rack-Mountable |
| Networking / Ports Qty | 30 |
| Data Link Protocol | 10 Gigabit Ethernet |
| Power / Device Type | Power Supply |
| Remote Management Protocol | DHCP, IPv4, IPv6 |
| Encryption Algorithm | SSL |
