TRANSITION 10/100/1000 BASETX TO SC 11803613
SKU
11803613
Category: Repeaters & Transceivers
- Primary Information

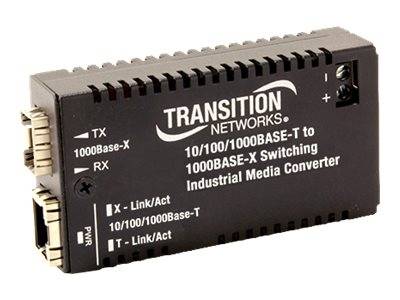

Product Description: Transition Networks Hardened Mini 10/100/1000 Bridging - fiber media converter - 10Mb LAN, 100Mb LAN, GigE Device Type: Fiber media converter - RJ-45 / SC single-mode Form Factor: DIN rail mountable Cabling Type: 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T Data Transfer Rate: 1 Gbps Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE Dimensions (WxDxH): 1.8 in x 3.3 in x 0.9 in Weight: 6.35 oz Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Fiber media converter Form Factor: DIN rail mountable - Networking
Connectivity Technology: Wired Cabling Type: 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE Data Transfer Rate: 1 Gbps Status Indicators: Power, link/activity Features: Auto-negotiation, auto-uplink (auto MDI/MDI-X), full duplex mode, Jumbo Frames support, over-current protection, Link Pass-Through Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3x - Expansion / Connectivity
Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-LX - SC single-mode female x 2 - Miscellaneous
Included Accessories: DIN-rail mounting kit Compliant Standards: FCC Class A certified, CISPR 22 Class A, EN55024, EN55022 Class A - Power
Power Device: External power adapter Power Consumption Operational: 1.2 Watt - Dimensions & Weight
Width: 1.8 in Depth: 3.3 in Height: 0.9 in Weight: 6.35 oz - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 167 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43201553 |
| Part# | TNI-M/GE-ISW-LX-01 |
| MFG Part# | M/GE-ISW-LX-01 |
| UPC | 648177040087 |
| Device Type | Fiber media converter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | DIN rail mountable |
| Data Link Protocol | 100Mb LAN, 10Mb LAN, GigE |
