TRANSITION 10/100/1000 TO 100BFX 11803538
SKU
11803538
Category: Repeaters & Transceivers
- Primary Information

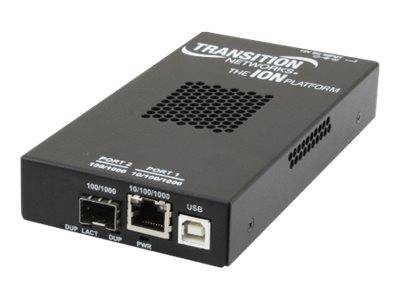

Product Description: Transition Networks S2220 Series OAM/IP-Based Remotely Managed - fiber media converter - 10Mb LAN, 100Mb LAN, GigE Device Type: Fiber media converter - RJ-45 / SC single-mode Form Factor: External Localization: North America Cabling Type: 10Base-T, 100Base-TX, 100Base-LX, 1000Base-T Data Transfer Rate: 1 Gbps Optical Wave Length: 1310 nm Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE Remote Management Protocol: SNMP 1, RMON, Telnet, SNMP 2c, HTTP, TFTP Max Transfer Distance: 6.2 miles Dimensions (WxDxH): 3.2 in x 6.5 in x 1 in Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Fiber media converter Form Factor: External Localization: North America - Networking
Connectivity Technology: Wired Cabling Type: 10Base-T, 100Base-TX, 100Base-LX, 1000Base-T Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE Data Transfer Rate: 1 Gbps Optical Wave Length: 1310 nm MAC Address Table Size: 8K entries Remote Management Protocol: SNMP 1, RMON, Telnet, SNMP 2c, HTTP, TFTP Max Transfer Distance: 6.2 miles Status Indicators: Power, link/activity Features: DHCP support, auto-negotiation, VLAN support, Syslog support, DiffServ support, IPv6 support, AutoCross, firmware upgradable, Link Fault Pass Through function (LFP), SNTP support, Quality of Service (QoS), RADIUS support, SSH support, Jumbo Frames support Compliant Standards: IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ah - Expansion / Connectivity
Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 100Base-LX - SC single-mode female - Miscellaneous
Compliant Standards: CSA, UL, EN55024, EN55022 Class A - Power
Power Device: External power adapter - Dimensions & Weight
Width: 3.2 in Depth: 6.5 in Height: 1 in - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43201553 |
| Part# | TNI-S2220-1014-NA |
| MFG Part# | S2220-1014-NA |
| Max Transfer Distance | 6.2 miles |
| Device Type | Fiber media converter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | External |
| Data Link Protocol | 100Mb LAN, 10Mb LAN, GigE |
| Remote Management Protocol | HTTP, RMON, SNMP 1, SNMP 2c, Telnet, TFTP |
