TRANSITION 10/100/1000B-T TO 11803087
SKU
11803087
Category: Repeaters & Transceivers
- Primary Information

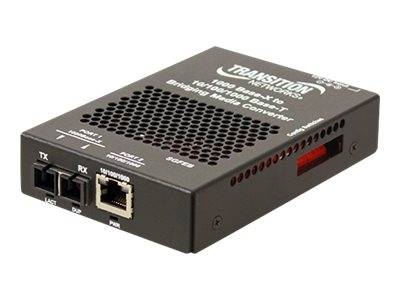

Product Description: Transition Networks Stand-Alone 10/100/1000 Ethernet Media Converter - fiber media converter - 10Mb LAN, 100Mb LAN, GigE Device Type: Fiber media converter - RJ-45 / SC single-mode Form Factor: External Localization: North America Cabling Type: 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T Data Transfer Rate: 1 Gbps Optical Wave Length: 1310 nm Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE Max Transfer Distance: 6.2 miles Dimensions (WxDxH): 1 in x 4.8 in x 3.2 in Weight: 8.82 oz Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Fiber media converter Form Factor: External Localization: North America - Networking
Connectivity Technology: Wired Cabling Type: 10Base-T, 1000Base-LX, 100Base-TX, 1000Base-T Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE Data Transfer Rate: 1 Gbps Optical Wave Length: 1310 nm MAC Address Table Size: 8K entries Max Transfer Distance: 6.2 miles Status Indicators: Power, link/activity Features: Auto-negotiation, AutoCross, Far End Fault (FEF), Remote-Fault-Detection (RFD), Jumbo Frames support, Energy Efficient Ethernet, Link Pass-Through Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3az - Expansion / Connectivity
Interfaces: 1 x Ethernet 1000Base-LX - SC single-mode female x 2 ¦ 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female - Miscellaneous
Compliant Standards: FCC Class A certified, CSA, UL, EN55024, EN55022 Class A, UL 60950 - Power
Power Device: External power adapter Power Consumption Operational: 2.2 Watt - Dimensions & Weight
Width: 1 in Depth: 4.8 in Height: 3.2 in Weight: 8.82 oz - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43201553 |
| Part# | TNI-SGFEB1014-130-NA |
| MFG Part# | SGFEB1014-130-NA |
| UPC | 648177038992 |
| Max Transfer Distance | 6.2 miles |
| Device Type | Fiber media converter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | External |
| Data Link Protocol | 100Mb LAN, 10Mb LAN, GigE |
