TRANSITION 10/100/1000BASE-T TO 11803298
SKU
11803298
Category: Repeaters & Transceivers
- Primary Information

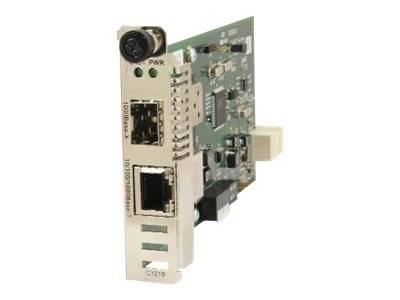

Product Description: Transition Networks C3210 Series C3210-1039 - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE Device Type: Fiber media converter - RJ-45 / LC multi-mode Form Factor: Plug-in module Cabling Type: 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T Data Transfer Rate: 1 Gbps Optical Wave Length: 850 nm Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE Remote Management Protocol: RMON Max Transfer Distance: 1800 ft Dimensions (WxDxH): 0.9 in x 6.5 in x 3.4 in Weight: 15.87 oz Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Fiber media converter Form Factor: Plug-in module - Networking
Connectivity Technology: Wired Cabling Type: 10Base-T, 1000Base-SX, 100Base-TX, 1000Base-T Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE Data Transfer Rate: 1 Gbps Optical Wave Length: 850 nm Remote Management Protocol: RMON Max Transfer Distance: 1800 ft Status Indicators: Power, link/activity Features: Auto-negotiation, auto-uplink (auto MDI/MDI-X), DiffServ support, IPv6 support, Digital Diagnostics Monitoring Interface (DDMI), Quality of Service (QoS), Jumbo Frames support, Type of Service (ToS), VLAN Double Tagging (Q-in-Q) Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3p - Expansion / Connectivity
Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-SX - LC multi-mode female - Miscellaneous
Compliant Standards: FCC Class A certified, EN55024, EN55022 Class A, CISPR, MSA SFF-8472, EN61000 - Power
Power Consumption Operational: 3.6 Watt - Dimensions & Weight
Width: 0.9 in Depth: 6.5 in Height: 3.4 in Weight: 15.87 oz - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43201553 |
| Part# | TNI-C3210-1039 |
| MFG Part# | C3210-1039 |
| UPC | 648177040698 |
| Max Transfer Distance | 1800 ft |
| Device Type | Fiber media converter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | Plug-in module |
| Data Link Protocol | 100Mb LAN, 10Mb LAN, 1GbE |
| Remote Management Protocol | RMON |
