TRANSITION 100M 10/100/1000 RJ45 11803498
SKU
11803498
Category: Network Adapters
- Primary Information

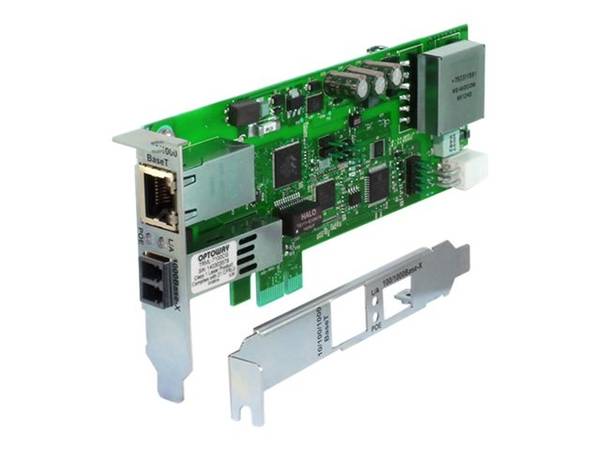

Product Description: Transition Networks - network adapter - PCIe - 1000Base-SX x 1 + Gigabit Ethernet (PoE+) x 1 Device Type: Network adapter Form Factor: Plug-in card Interface (Bus) Type: PCI Express x1 PCI Specification Revision: PCIe 2.1 Ports: 1000Base-SX x 1 + Gigabit Ethernet (PoE+) x 1 Dimensions (WxDxH): 0.9 in x 6.5 in x 4.8 in Weight: 31.74 oz Cabling Type: Ethernet 10Base-T, Ethernet 1000Base-SX, Ethernet 100Base-TX, Ethernet 1000Base-T Data Link Protocol: 10Mb LAN, 100Mb LAN, GigE Max Transfer Distance: 1800 ft Data Transfer Rate: 1 Gbps Compliant Standards: IEEE 802.3, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at System Requirements: Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows 7 / 8.1 / 10 Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Network adapter Form Factor: Plug-in card Interface (Bus) Type: PCI Express x1 PCI Specification Revision: PCIe 2.1 - Networking
Ports: 1000Base-SX x 1 + Gigabit Ethernet (PoE+) x 1 Connectivity Technology: Wired Cabling Type: Ethernet 10Base-T, Ethernet 1000Base-SX, Ethernet 100Base-TX, Ethernet 1000Base-T Data Link Protocol: Ethernet, Fast Ethernet, Gigabit Ethernet Data Transfer Rate: 1 Gbps Max Transfer Distance: 1800 ft Optical Wave Length: 850 nm Status Indicators: Port transmission speed, port duplex mode, PoE, link/activity Features: Flow control, full duplex capability, VLAN support, wake on LAN (WOL), Jumbo Frames support, PoE+, Energy Efficient Ethernet, PXE 2.1 support Compliant Standards: IEEE 802.3, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at - Expansion / Connectivity
Interfaces: 1 x 1000Base-SX - LC multi-mode - x 2 ¦ 1 x 1000Base-T (PoE+) - RJ-45 - Miscellaneous
Included Accessories: Low-profile bracket Compliant Standards: EN55024, EN55022 Class B - Power
Power Consumption Operational: 43.6 Watt - Software / System Requirements
OS Required: Microsoft Windows Server 2008, Microsoft Windows Server 2012, Microsoft Windows 7 / 8.1 / 10 - Dimensions & Weight
Width: 0.9 in Depth: 6.5 in Height: 4.8 in Weight: 31.74 oz - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201404
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43201404 |
| Part# | TNI-N-GXE-POE-LC-01 |
| MFG Part# | N-GXE-POE-LC-01 |
| Max Transfer Distance | 1800 ft |
| Device Type | Network adapter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | Plug-in card |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
