TRANSITION 19 SLOT CHAS CH3 11803602
SKU
11803602
Category: Repeaters & Transceivers
- Primary Information

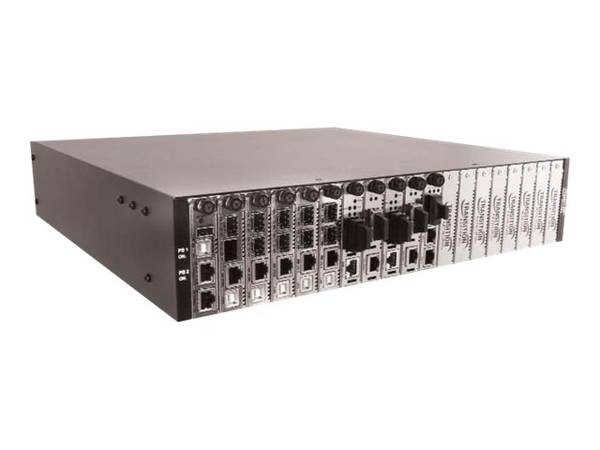

Product Description: Transition Networks 19-Slot Chassis for The ION Platform - modular expansion base Device Type: Modular expansion base Form Factor: External Localization: North America Power: AC 120/230 V / DC 48 V Dimensions (WxDxH): 16.9 in x 15.8 in x 3.5 in Weight: 18.96 lbs Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Modular expansion base Installed Modules Qty (Max): 1 (19) Width: 16.9 in Depth: 15.8 in Height: 3.5 in Weight: 18.96 lbs Localization: North America - Networking
Form Factor: External Connectivity Technology: Wired Remote Management Protocol: SNMP, Telnet, HTTP Features: VLAN support, Syslog support, Trivial File Transfer Protocol (TFTP) support - Expansion / Connectivity
Expansion Slots: 19 (total) / 19 (free) x expansion slot Interfaces: 2 x 100Base-TX (management) ¦ 1 x USB - Miscellaneous
Compliant Standards: FCC Class A certified, UL, EN55022, EN55024, CISPR - Power
Power Device: Internal power supply Installed Qty: 1 Max Supported Qty: 2 Voltage Required: AC 120/230 V / DC 48 V Power Provided: 200 Watt - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43222608 |
| Part# | TNI-ION219-A-NA |
| MFG Part# | ION219-A-NA |
| UPC | 648177029129 |
| Device Type | Modular expansion base |
| Connectivity Technology | Wired |
| Form Factor | External |
| Remote Management Protocol | HTTP, SNMP, Telnet |
