TRANSITION 2 RJ45 TO 2 OPEN SFP PT 11803369
SKU
11803369
Category: Repeaters & Transceivers
- Primary Information

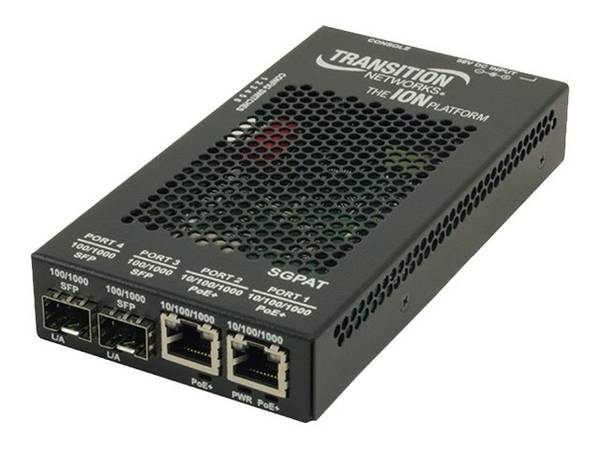

Product Description: Transition Networks Stand-Alone SGPAT1040-305 - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE Device Type: Fiber media converter - 2 x RJ-45 / 2 x SFP (mini-GBIC) Form Factor: DIN rail mountable Localization: North America Cabling Type: 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X, 100Base-X Data Transfer Rate: 1 Gbps Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE Max Transfer Distance: 328 ft Power Over Ethernet (PoE): PoE+ Dimensions (WxDxH): 3.2 in x 4.8 in x 1 in Weight: 31.74 oz Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Fiber media converter Form Factor: DIN rail mountable Localization: North America - Networking
Connectivity Technology: Wired Cabling Type: 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X, 100Base-X Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE Data Transfer Rate: 1 Gbps MAC Address Table Size: 8K entries Max Transfer Distance: 328 ft Status Indicators: Port status, power, PoE, link/activity Features: Auto-negotiation, auto-uplink (auto MDI/MDI-X), half duplex mode, full duplex mode, wall mountable, Remote-Fault-Detection (RFD), Jumbo Frames support, Active Link Pass Through function (ALPT) Compliant Standards: IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az, IEEE 802.3-2012 - Expansion / Connectivity
Interfaces: 2 x Ethernet 10Base-T/100Base-TX/1000Base-T (PoE+) - RJ-45 female ¦ 2 x Ethernet 100Base-X/1000Base-X - SFP - Miscellaneous
Compliant Standards: UL, EN55024, EN55022 Class A - Power
Power Over Ethernet (PoE): PoE+ Power Device: External power adapter Voltage Required: (50/60 Hz) Power Provided: 65.5 Watt - Dimensions & Weight
Width: 3.2 in Depth: 4.8 in Height: 1 in Weight: 31.74 oz - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 113 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43201553 |
| Part# | TNI-SGPAT1040-305-NA |
| MFG Part# | SGPAT1040-305-NA |
| Max Transfer Distance | 328 ft |
| Device Type | Fiber media converter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | DIN rail mountable |
| Data Link Protocol | 100Mb LAN, 10Mb LAN, 1GbE |
