TRANSITION 2KM 10/100/1000BTX RJ45 11803495
SKU
11803495
CA$551.47

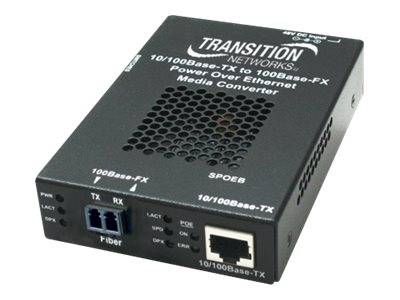

Media Converters SPOEB1039-105-NA - 10/100Base-TX PoE (RJ-45) 100 m/328 ft. to 100Base-FX 1300nm multimode (LC) 2 km/1.2 mi.] Link Budget: 11.0 dB - Lifetime Warranty]
Category: Repeaters & Transceivers
- Primary Information
Product Description: Transition Networks Stand-Alone Power Over Ethernet Media Converter - fiber media converter - 100Mb LAN Device Type: Fiber media converter - RJ-45 / LC multi-mode Form Factor: External Localization: North America Cabling Type: 100Base-FX, 100Base-TX Data Transfer Rate: 100 Mbps Optical Wave Length: 1300 nm Data Link Protocol: 100Mb LAN Max Transfer Distance: 1.2 miles Power Over Ethernet (PoE): PoE Power: AC 120/230 V Dimensions (WxDxH): 3.2 in x 4.7 in x 1 in Weight: 31.74 oz Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Fiber media converter Form Factor: External Localization: North America - Networking
Connectivity Technology: Wired Cabling Type: 100Base-FX, 100Base-TX Data Link Protocol: 100Mb LAN Data Transfer Rate: 100 Mbps Optical Wave Length: 1300 nm Max Transfer Distance: 1.2 miles Status Indicators: Port transmission speed, port duplex mode, power, PoE, link/activity Features: Auto-negotiation, auto-uplink (auto MDI/MDI-X), Far End Fault (FEF), half duplex mode, full duplex mode, over-current protection, undercurrent protection, Link Pass-Through, Automatic Link Restoration, Power Sourcing Equipment (PSE) Compliant Standards: IEEE 802.3, IEEE 802.3af - Expansion / Connectivity
Interfaces: 1 x Ethernet 100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - LC multi-mode female x 2 - Miscellaneous
Compliant Standards: UL 1950, EN55022 Class A, FCC Part 15 B - Power
Power Over Ethernet (PoE): PoE Power Device: External power adapter Voltage Required: AC 120/230 V (50/60 Hz) Power Consumption Operational: 20 Watt - Dimensions & Weight
Width: 3.2 in Depth: 4.7 in Height: 1 in Weight: 31.74 oz - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43201553 |
| Part# | TNI-SPOEB1039-105-NA |
| MFG Part# | SPOEB1039-105-NA |
| Max Transfer Distance | 1.2 miles |
| Device Type | Fiber media converter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 100 Mbps |
| Form Factor | External |
| Data Link Protocol | 100Mb LAN |
