TRANSITION 4PT 10/100/1000BASET 11803496
SKU
11803496
Category: Hubs & Switches
- Primary Information

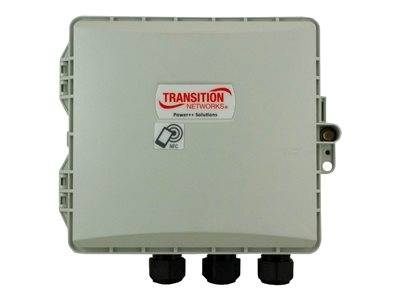

Product Description: Transition Networks Hardened SESPM1040-541-LT-DC - switch - 5 ports - managed Device Type: Switch - 5 ports - managed Subtype: Gigabit Ethernet Ports: 4 x 10/100/1000 (PoE++) + 1 x combo Gigabit Ethernet/Gigabit SFP Power Over Ethernet (PoE): PoE++ PoE Budget: 80 W Capacity: VLAN IDs: 4000 MAC Address Table Size: 8K entries Jumbo Frame Support: 10KB Remote Management Protocol: SNMP, DMI, SSH, CLI, NTP Features: VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, Cable Diagnostics Function, IPv4 support, tagged VLAN, NFC support, 6KV Surge protection, APR, Private VLAN, port-based VLAN, anti-tampering protection, BLE clients support Compliant Standards: IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt Power: DC Dimensions (WxDxH): 10.1 in x 4.3 in x 8.5 in Weight: 4.81 lbs Manufacturer Warranty: 2-year warranty - General
Device Type: Switch - 5 ports - managed Enclosure Type: Wall-mountable Subtype: Gigabit Ethernet Ports: 4 x 10/100/1000 (PoE++) + 1 x combo Gigabit Ethernet/Gigabit SFP Power Over Ethernet (PoE): PoE++ PoE Budget: 80 W Capacity: VLAN IDs: 4000 MAC Address Table Size: 8K entries Jumbo Frame Support: 10KB Remote Management Protocol: SNMP, DMI, SSH, CLI, NTP Encryption Algorithm: SSL Authentication Method: Secure Shell (SSH), RADIUS, TACACS+ Features: VLAN support, auto-uplink (auto MDI/MDI-X), Syslog support, Cable Diagnostics Function, IPv4 support, tagged VLAN, NFC support, 6KV Surge protection, APR, Private VLAN, port-based VLAN, anti-tampering protection, BLE clients support Compliant Standards: IEEE 802.3, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt - Internet of Things (IoT)
Communications Technology: Bluetooth, NFC - Expansion / Connectivity
Interfaces: 4 x 1000Base-T RJ-45 90 W ¦ 1 x 1000Base-T / 1000Base-X RJ-45/SFP ¦ 1 x management (RS-232) RJ-45 - Power
Voltage Required: DC Power Consumption Operational: 10 Watt - Miscellaneous
Compliant Standards: IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, EN55024, NEMA Type 4X, UL 60950-1, IEC 60950-1, EN 60950-1, IP66, IEC 60950-22, EN 55022 Class A, ITU-T K.21, GR-1089-CORE, Issue 4, ISO/IEC 14443A - Dimensions & Weight
Width: 10.1 in Depth: 4.3 in Height: 8.5 in Weight: 4.81 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 158 °F Humidity Range Operating: 5 - 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 185 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43222612 |
| Part# | TNI-SESPM1040-541-LT-DC |
| MFG Part# | SESPM1040-541-LT-DC |
| Device Type | Switch - 5 ports - managed |
| Enclosure Type | Wall-mountable |
| Remote Management Protocol | CLI, DMI, NTP, SNMP, SSH |
| Encryption Algorithm | SSL |
