TRANSITION 4XT1/E1ION W/ ETH TO 11803033
SKU
11803033
Category: Repeaters & Transceivers
- Primary Information

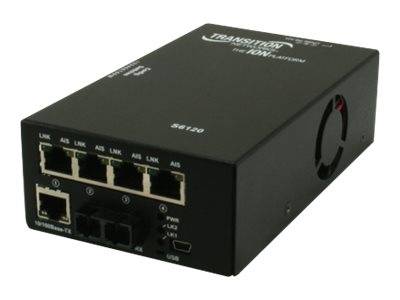

Product Description: Transition Networks S6120 Series 4xT1/E1/J1 + 10/100 Ethernet Copper to Fiber Network Interface Device - short-haul modem - 10Mb LAN, 100Mb LAN Device Type: Short-haul modem Form Factor: External Localization: North America Cabling Type: 10Base-T, 100Base-TX Data Transfer Rate: 100 Mbps Optical Wave Length: 1300 nm Data Link Protocol: 10Mb LAN, 100Mb LAN Max Transfer Distance: 1.2 miles Power: AC 120/230 V Dimensions (WxDxH): 3.7 in x 6.5 in x 1.8 in Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Short-haul modem Form Factor: External Localization: North America - Networking
Connectivity Technology: Wired Cabling Type: 10Base-T, 100Base-TX Data Link Protocol: 10Mb LAN, 100Mb LAN Data Transfer Rate: 100 Mbps Optical Wave Length: 1300 nm Line Rate: T-1/E-1/J-1 Framing Format: ANSI T1.403, G.703 Max Transfer Distance: 1.2 miles Status Indicators: Power, status Features: Flow control, auto-uplink (auto MDI/MDI-X), manageable, AutoCross, firmware upgradable - Expansion / Connectivity
Interfaces: 1 x T1/E1/J1 - SC multi-mode female x 2 ¦ 4 x T1/E1/J1 - RJ-48 female ¦ 1 x Ethernet 10Base-T/100Base-TX - RJ-45 female ¦ 1 x USB - mini-USB Type A female - Miscellaneous
Compliant Standards: EN55024, EN55022 Class A - Power
Power Device: External power adapter Voltage Required: AC 120/230 V (50/60 Hz) Power Consumption Operational: 6 Watt - Dimensions & Weight
Width: 3.7 in Depth: 6.5 in Height: 1.8 in - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 14 °F Max Operating Temperature: 149 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43201553 |
| Part# | TNI-S6120-1013-NA |
| MFG Part# | S6120-1013-NA |
| Max Transfer Distance | 1.2 miles |
| Device Type | Short-haul modem |
| Connectivity Technology | Wired |
| Data Transfer Rate | 100 Mbps |
| Form Factor | External |
| Data Link Protocol | 100Mb LAN, 10Mb LAN |
