TRANSITION 9 SLOT AC ION CHAS REDUN 11803204
SKU
11803204
Category: Repeaters & Transceivers
- Primary Information

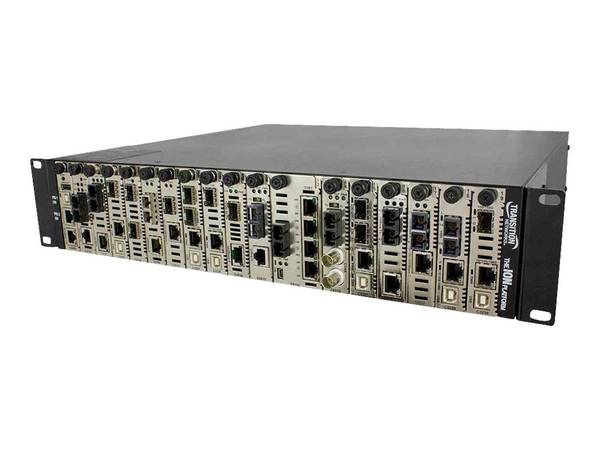

Product Description: Transition Networks 19-Slot Chassis for ION Slide-in Modules - modular expansion base - with Transition ION Management Module Device Type: Modular expansion base Form Factor: External Localization: North America Power: AC 120/230 V Power Redundancy: Yes Dimensions (WxDxH): 16.9 in x 15.8 in x 3.5 in Weight: 18.96 lbs Manufacturer Warranty: Limited lifetime warranty Bundled with: Transition ION Management Module - General
Device Type: Modular expansion base Width: 16.9 in Depth: 15.8 in Height: 3.5 in Weight: 18.96 lbs Localization: North America Bundled with: Transition ION Management Module - Networking
Form Factor: External Connectivity Technology: Wired Remote Management Protocol: SNMP 1, Telnet, SNMP 2c, HTTP, TFTP, CLI Status Indicators: Power Features: VLAN support, firmware upgradable, 802.1x authentication Encryption Algorithm: SSL Authentication Method: Secure Shell (SSH) Compliant Standards: IEEE 802.1x - Expansion / Connectivity
Expansion Slots: 19 (total) / 19 (free) x expansion slot Interfaces: 2 x 100Base-TX (management) - RJ-45 ¦ 1 x USB - Miscellaneous
Compliant Standards: FCC Class A certified, UL, EN55022, EN55024, CISPR - Power
Power Device: Internal power supply Installed Qty: 2 Max Supported Qty: 2 Power Redundancy: Yes Voltage Required: AC 120/230 V - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43201553 |
| Part# | TNI-ION219-AAMB-NA |
| MFG Part# | ION219-AAMB-NA |
| Device Type | Modular expansion base |
| Connectivity Technology | Wired |
| Form Factor | External |
| Remote Management Protocol | CLI, HTTP, SNMP 1, SNMP 2c, Telnet, TFTP |
| Encryption Algorithm | SSL |
