TRANSITION ETH OVER COAX GB RJ45 11803132

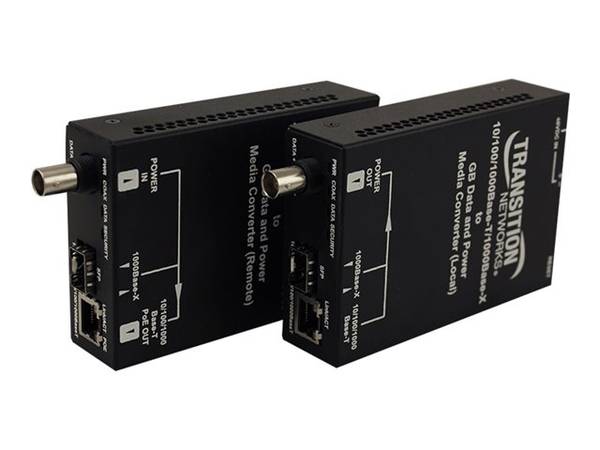

Name: TRANSITION ETH OVER COAX GB RJ45
Brand: TRANSITION NETWORKS
SKU: 11803132
Price: 769.43 CAD
Availability: OutOfStock

SKU

11803132

CA$769.43

ETH OVER COAX GB RJ45 SFP TO BNC POE+

Primary Information

Product Description:	Transition Networks Ethernet Over Coax Extender - media converter - 10Mb LAN, 100Mb LAN, 1GbE
Device Type:	Media converter
Form Factor:	External
Cabling Type:	10Base-T, 100Base-TX, 1000Base-T, Coax, 1000Base-X
Data Link Protocol:	10Mb LAN, 100Mb LAN, 1GbE
Transmission Medium:	Coax
Power Over Ethernet (PoE):	PoE+
Dimensions (WxDxH):	3.2 in x 1.2 in x 5.4 in
Weight:	16.93 oz
Manufacturer Warranty:	5-year warranty

Networking

Connectivity Technology:	Wired
Cabling Type:	10Base-T, 100Base-TX, 1000Base-T, Coax, 1000Base-X
Data Link Protocol:	10Mb LAN, 100Mb LAN, 1GbE
Features:	DHCP support, auto-uplink (auto MDI/MDI-X), NTP time synchronization, AES encryption
Compliant Standards:	IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az

Expansion / Connectivity

Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female Â¦ 1 x Ethernet 100Base-FX/1000Base-X - SFP female Â¦ 1 x Ethernet 1000Base-T (PoE+) - BNC female
Miscellaneous

Compliant Standards: UL, EN55024, FCC Part 15, IP30
Power

Power Over Ethernet (PoE): PoE+

Power Consumption Operational: 45 Watt
Dimensions & Weight

Width: 3.2 in

Depth: 1.2 in

Height: 5.4 in

Weight: 16.93 oz
Manufacturer Warranty

Service & Support: Limited warranty - 5 years
Environmental Parameters

Min Operating Temperature: 32 Â°F

Max Operating Temperature: 149 Â°F

Humidity Range Operating: 5 - 95% (non-condensing)
Special Feature

COO: Inquire

TAA compliance: Inquire
UNSPSC Code

UNSPSC Code: 43201553
