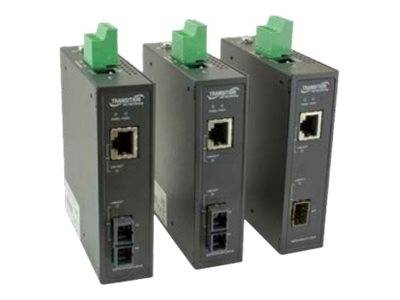

TRANSITION IND MEDIA CONVRT 11803018
SKU
11803018
CA$550.10
Ind Media Converter, 10/100/1000Base-T to 100/1000Base-X, SFP, Ext Temp -10/100/1000Base-T (RJ-45) 100 m/328 ft. to 100/1000Base-X SFP slot (empty)]
Category: Repeaters & Transceivers
- Primary Information
Product Description: Transition Networks SISTG10xx-211-LRT-B Series - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE Device Type: Fiber media converter - RJ-45 / SFP (mini-GBIC) Form Factor: DIN rail mountable Cabling Type: 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X Data Transfer Rate: 1 Gbps Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE Power: DC 12 - 48 V Dimensions (WxDxH): 1.2 in x 3.9 in x 4.3 in Weight: 15.52 oz Manufacturer Warranty: 5-year warranty - General
Device Type: Fiber media converter Form Factor: DIN rail mountable - Networking
Connectivity Technology: Wired Cabling Type: 10Base-T, 100Base-TX, 1000Base-T, 1000Base-X Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE Data Transfer Rate: 1 Gbps Status Indicators: Power, link/activity Features: Auto-negotiation, over-loading protection, Jumbo Frames support (up to 9000 bytes) Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x - Expansion / Connectivity
Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-X - SFP - Miscellaneous
Mounting Kit: Included Compliant Standards: FCC Class A certified, EN55022 Class A, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, IP30, CISPR Class A, UL Class 1 Division 2 - Power
Voltage Required: DC 12 - 48 V Power Consumption Operational: 3.4 Watt - Dimensions & Weight
Width: 1.2 in Depth: 3.9 in Height: 4.3 in Weight: 15.52 oz - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 167 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43201553 |
| Part# | TNI-SISTG1040-211-LRT-B |
| MFG Part# | SISTG1040-211-LRT-B |
| UPC | 648177042333 |
| Device Type | Fiber media converter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | DIN rail mountable |
| Data Link Protocol | 100Mb LAN, 10Mb LAN, 1GbE |
