TRANSITION IND MEDIA CONVRT 11803070
SKU
11803070
Category: Repeaters & Transceivers
- Primary Information

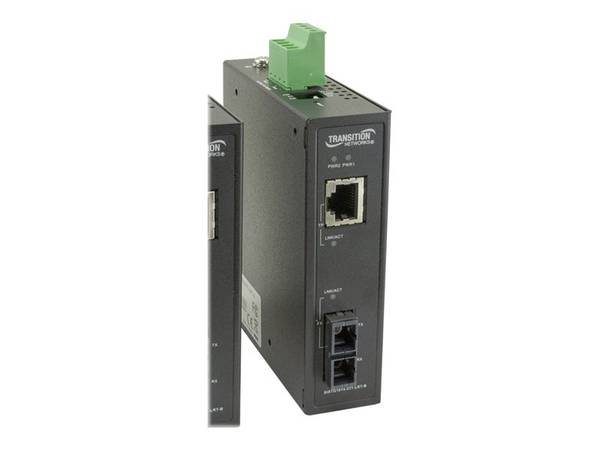

Product Description: Transition Networks Unmanaged Hardened - fiber media converter - 1GbE Device Type: Fiber media converter - RJ-45 / SC single-mode Form Factor: DIN rail mountable Cabling Type: 1000Base-LX, 1000Base-T Data Transfer Rate: 1 Gbps Optical Wave Length: 1310 nm Data Link Protocol: 1GbE Max Transfer Distance: 6.2 miles Dimensions (WxDxH): 1.2 in x 3.9 in x 4.3 in Weight: 15.52 oz Manufacturer Warranty: 5-year warranty - General
Device Type: Fiber media converter Form Factor: DIN rail mountable - Networking
Connectivity Technology: Wired Cabling Type: 1000Base-LX, 1000Base-T Data Link Protocol: 1GbE Data Transfer Rate: 1 Gbps Optical Wave Length: 1310 nm Max Transfer Distance: 6.2 miles Status Indicators: Power, link/activity Features: Auto-negotiation, auto-uplink (auto MDI/MDI-X), Jumbo Frames support, over-current protection, Link Pass-Through, reverse polarity protection Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3x - Expansion / Connectivity
Interfaces: 1 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-SX - SC single-mode female x 2 - Miscellaneous
Included Accessories: DIN-rail mounting kit Compliant Standards: FCC Class A certified, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, EN 61000-4-5, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, CISPR, IP30, EN 55022 Class A, UL Class 1 Division 2 - Power
Power Consumption Operational: 3.4 Watt - Dimensions & Weight
Width: 1.2 in Depth: 3.9 in Height: 4.3 in Weight: 15.52 oz - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 167 °F Humidity Range Operating: 5 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43201553 |
| Part# | TNI-SISTG1014-211-LRT-B |
| MFG Part# | SISTG1014-211-LRT-B |
| Max Transfer Distance | 6.2 miles |
| Device Type | Fiber media converter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | DIN rail mountable |
| Data Link Protocol | 1GbE |
