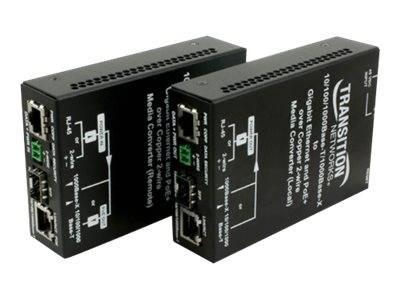

TRANSITION IP GB POE+ OVER 2-WIRE 11803233
SKU
11803233
Category: Repeaters & Transceivers
- Primary Information
Product Description: Transition Networks Ethernet Over 2-Wire Extender - Local - network extender - 1GbE Device Type: Network extender Ports Qty: 2 Form Factor: Wall / DIN rail mountable Cabling Type: 1000Base-T, 1000Base-X Data Link Protocol: 1GbE Max Transfer Distance: 2000 ft Power Over Ethernet (PoE): PoE+ Dimensions (WxDxH): 3.2 in x 5.4 in x 1.2 in Weight: 16.93 oz Manufacturer Warranty: 5-year warranty - General
Device Type: Network extender Form Factor: Wall / DIN rail mountable - Networking
Ports Qty: 2 Connectivity Technology: Wired Cabling Type: 1000Base-T, 1000Base-X Data Link Protocol: 1GbE Max Transfer Distance: 2000 ft Status Indicators: Power, PoE, link/activity Features: 128-bit encryption, auto-uplink (auto MDI/MDI-X), IPv6 support, firmware upgradable, IPv4 support, AES encryption, Auto Power Reset (APR) Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3az - Expansion / Connectivity
Interfaces: 2 x Ethernet 1000Base-T - RJ-45 female ¦ 1 x Ethernet 1000Base-X - SFP ¦ 1 x network - 2 pin terminal block - Miscellaneous
Compliant Standards: Plug and Play, EN55024, CISPR 22, FCC Part 15, IP30, EN 55022 Class A - Power
Power Over Ethernet (PoE): PoE+ Power Provided: 45 Watt - Dimensions & Weight
Width: 3.2 in Depth: 5.4 in Height: 1.2 in Weight: 16.93 oz - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 149 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43201553 |
| Part# | TNI-EO2PSE4052-111 |
| MFG Part# | EO2PSE4052-111 |
| UPC | 648177041008 |
| Max Transfer Distance | 2000 ft |
| Device Type | Network extender |
| Connectivity Technology | Wired |
| Form Factor | Wall / DIN rail mountable |
| Data Link Protocol | 1GbE |
