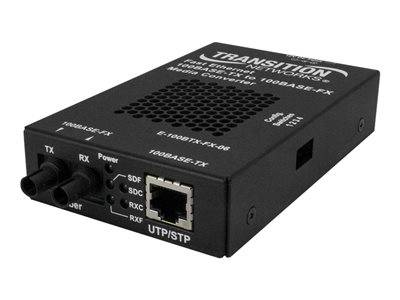

TRANSITION MEDIA CONVRT 100BASE-TX 11803195
SKU
11803195
Category: Repeaters & Transceivers
- Primary Information
Product Description: Transition Networks E-100BTX-FX-06 - fiber media converter - 100Mb LAN Device Type: Fiber media converter - RJ-45 / ST multi-mode Form Factor: External Localization: North America Cabling Type: 100Base-FX, 100Base-TX Data Transfer Rate: 100 Mbps Optical Wave Length: 1300 nm Data Link Protocol: 100Mb LAN Max Transfer Distance: 1.2 miles Power: AC 100 - 230 V Dimensions (WxDxH): 3 in x 4.7 in x 1 in Weight: 31.74 oz Manufacturer Warranty: Limited lifetime warranty - General
Device Type: Fiber media converter Form Factor: External Localization: North America - Networking
Connectivity Technology: Wired Cabling Type: 100Base-FX, 100Base-TX Data Link Protocol: 100Mb LAN Data Transfer Rate: 100 Mbps Optical Wave Length: 1300 nm Max Transfer Distance: 1.2 miles Status Indicators: Power, link/activity Features: Auto-negotiation, auto-uplink (auto MDI/MDI-X), Far End Fault (FEF), Automatic Link Restoration, Active Link Pass Through function (ALPT) Compliant Standards: IEEE 802.3 - Expansion / Connectivity
Interfaces: 1 x Ethernet 100Base-TX - RJ-45 female ¦ 1 x Ethernet 100Base-FX - ST multi-mode female x 2 - Miscellaneous
Compliant Standards: FCC Class A certified, EN55024, EN 61000, EN 55022 Class A - Power
Power Device: External power adapter Voltage Required: AC 100 - 230 V (50/60 Hz) Power Consumption Operational: 1.75 Watt - Dimensions & Weight
Width: 3 in Depth: 4.7 in Height: 1 in Weight: 31.74 oz - Manufacturer Warranty
Service & Support: Limited warranty - lifetime - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43201553 |
| Part# | TNI-E-100BTX-FX-06-NA |
| MFG Part# | E-100BTX-FX-06-NA |
| UPC | 648177043675 |
| Max Transfer Distance | 1.2 miles |
| Device Type | Fiber media converter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 100 Mbps |
| Form Factor | External |
| Data Link Protocol | 100Mb LAN |
