TRANSITION MGD HARD POE+ SWCH 8 11803599
SKU
11803599
Category: Hubs & Switches
- Primary Information

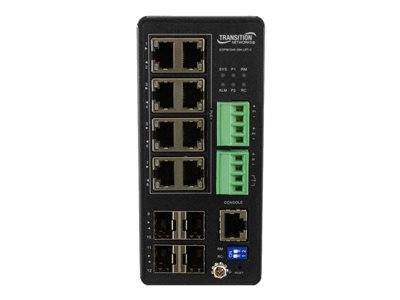

Product Description: Transition Networks Hardened SISPM1040-384-LRT-C - switch - 8 ports - managed Device Type: Switch - 8 ports - managed Subtype: Gigabit Ethernet Ports: 8 x 10/100/1000 (PoE+) + 4 x 1000Base-X Power Over Ethernet (PoE): PoE+ PoE Budget: 240 W Performance: Switching bandwidth: 24 Gbps Capacity: Virtual interfaces (VLANs): 4000 ¦ ACL entries: 256 ¦ QoS hardware queues: 8 MAC Address Table Size: 8K entries Jumbo Frame Support: 9.6KB Routing Protocol: Static IP routing Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, SSH-2, CLI, ICMP, DHCP, TACACS+, RADIUS Features: Syslog support, port mirroring, DiffServ support, store and forward, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, temperature sensor, reset button, IPv4 support, LLDP support, DHCP relay, Port Security, port configuration, DHCP client, Dynamic VLAN Support (GVRP), loop prevention, built-in DIP switch, Strict Priority (SP), Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), IP source guard, VLAN Double Tagging (Q-in-Q), Voice VLAN, Auto Power Reset (APR), VLAN management, Private VLAN Edge (PVE), Weighted Round Robin (WRR), DSCP based CoS, Device Management System (DMS), MAC based VLAN, Media Redundancy Protocol (MRP) Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, ITU-T Y.1731, ITU-T G.8031, ITU-T G.8032 Power: AC 120/230 V / DC 124 - 370 V Dimensions (WxDxH): 2.4 in x 5.3 in x 5.1 in Weight: 2.2 lbs Manufacturer Warranty: 5-year warranty - General
Device Type: Switch - 8 ports - managed Enclosure Type: Wall-mountable Subtype: Gigabit Ethernet Ports: 8 x 10/100/1000 (PoE+) + 4 x 1000Base-X Power Over Ethernet (PoE): PoE+ PoE Budget: 240 W Performance: Switching bandwidth: 24 Gbps Capacity: Virtual interfaces (VLANs): 4000 ¦ ACL entries: 256 ¦ QoS hardware queues: 8 MAC Address Table Size: 8K entries Jumbo Frame Support: 9.6KB Routing Protocol: Static IP routing Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTPS, SSH, SSH-2, CLI, ICMP, DHCP, TACACS+, RADIUS Authentication Method: Secure Shell (SSH), RADIUS, TACACS+, Secure Shell v.2 (SSH2) Features: Syslog support, port mirroring, DiffServ support, store and forward, IPv6 support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, temperature sensor, reset button, IPv4 support, LLDP support, DHCP relay, Port Security, port configuration, DHCP client, Dynamic VLAN Support (GVRP), loop prevention, built-in DIP switch, Strict Priority (SP), Precision Time Protocol (PTP), DiffServ Code Point (DSCP) support, Ethernet Ring Protection Switching (ERPS), IP source guard, VLAN Double Tagging (Q-in-Q), Voice VLAN, Auto Power Reset (APR), VLAN management, Private VLAN Edge (PVE), Weighted Round Robin (WRR), DSCP based CoS, Device Management System (DMS), MAC based VLAN, Media Redundancy Protocol (MRP) Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3at, ITU-T Y.1731, ITU-T G.8031, ITU-T G.8032 Status Indicators: Port status, system, alarm, ring master, coupling, power 1, power 2 - Expansion / Connectivity
Interfaces: 8 x 1000Base-T RJ-45 PoE+ - 30 W ¦ 4 x 1000Base-X SFP ¦ 1 x serial (console) RJ-45 - Power
Voltage Required: AC 120/230 V / DC 124 - 370 V - Miscellaneous
Compliant Standards: EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, FCC Part 15, EN 61000-4-5, EN 61000-4-8, IEC 60950-1, IEC 60068-2-27, IEC 60068-2-32, IEC 60068-2-6, DNV, EN 50121-4, IP30, NEMA TS-2, IEC 61850-3, IEEE 1613, EN 50155, IEEE 1588v2, UL Class 1 Division 2, IEC 62439-2 - Dimensions & Weight
Width: 2.4 in Depth: 5.3 in Height: 5.1 in Weight: 2.2 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 167 °F Humidity Range Operating: 5 - 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 185 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43222612 |
| Part# | TNI-SISPM1040-384-LRT-C |
| MFG Part# | SISPM1040-384-LRT-C |
| UPC | 648177041060 |
| Device Type | Switch - 8 ports - managed |
| Enclosure Type | Wall-mountable |
| Remote Management Protocol | CLI, DHCP, HTTPS, ICMP, RADIUS, SNMP 1, SNMP 2c, SNMP 3, SSH, SSH-2, TACACS+, Telnet |
