TRANSITION MGD SWCH 20PT 100/1000 11803177
SKU
11803177
Category: Hubs & Switches
- Primary Information

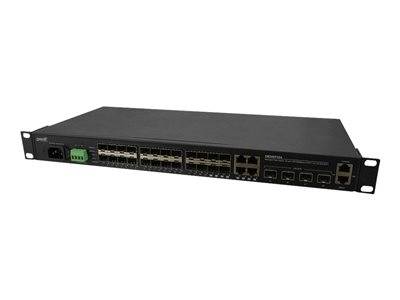

Product Description: Transition Networks SM24DP4XA - switch - 28 ports - managed - rack-mountable Device Type: Switch - 28 ports - managed Enclosure Type: Rack-mountable 1U Subtype: Gigabit Ethernet Ports: 20 x Gigabit SFP + 4 x combo Gigabit Ethernet/Gigabit SFP + 4 x 1 Gigabit / 10 Gigabit SFP+ Performance: Switching capacity: 128 Gbps Capacity: VLANs supported: 4000 ¦ QoS priority queues per port: 8 MAC Address Table Size: 32K entries Jumbo Frame Support: 10KB Routing Protocol: IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI Features: VLAN support, IGMP snooping, store and forward, IPv6 support, firmware upgradable, STP support, RSTP support, MSTP support, ACL support, QoS, DHCP server, MLD snooping, DHCP relay, Port Security, IGMP proxy, port grouping, 802.1x authentication, PTP, ERPS, MAC and IP-based ACLs support, IP source guard, IGMP querier, Voice VLAN, CFM, VLAN management, Private VLAN, Ethernet OAM, EEE, WRR, MAC based VLAN, port-based VLAN, port trunking, EVC, traffic monitoring, Q-in-Q tunneling, IPv4 and IPv6 dual stack, IP unicast Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3az, ITU-T Y.1731, ITU-T G.8031, ITU-T G.8032, IEEE 1588v2, IEEE 802.3ag Power: AC 120/230 V (50/60 Hz) Dimensions (WxDxH): 17.4 in x 8.3 in x 1.7 in Weight: 2.87 lbs Localization: North America Manufacturer Warranty: 5-year warranty - General
Device Type: Switch - 28 ports - managed Enclosure Type: Rack-mountable 1U Subtype: Gigabit Ethernet Ports: 20 x Gigabit SFP + 4 x combo Gigabit Ethernet/Gigabit SFP + 4 x 1 Gigabit / 10 Gigabit SFP+ Performance: Switching capacity: 128 Gbps Capacity: VLANs supported: 4000 ¦ QoS priority queues per port: 8 MAC Address Table Size: 32K entries Jumbo Frame Support: 10KB Routing Protocol: IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD Remote Management Protocol: SNMP 1, Telnet, SNMP 3, SNMP 2c, HTTP, TFTP, CLI Encryption Algorithm: SSL Authentication Method: Secure Shell (SSH), RADIUS, TACACS+ Features: VLAN support, IGMP snooping, store and forward, IPv6 support, firmware upgradable, STP support, RSTP support, MSTP support, ACL support, QoS, DHCP server, MLD snooping, DHCP relay, Port Security, IGMP proxy, port grouping, 802.1x authentication, PTP, ERPS, MAC and IP-based ACLs support, IP source guard, IGMP querier, Voice VLAN, CFM, VLAN management, Private VLAN, Ethernet OAM, EEE, WRR, MAC based VLAN, port-based VLAN, port trunking, EVC, traffic monitoring, Q-in-Q tunneling, IPv4 and IPv6 dual stack, IP unicast Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3ae, IEEE 802.1s, IEEE 802.1ad, IEEE 802.3ah, IEEE 802.1ag, IEEE 802.1ab (LLDP), IEEE 802.3az, ITU-T Y.1731, ITU-T G.8031, ITU-T G.8032, IEEE 1588v2, IEEE 802.3ag - Expansion / Connectivity
Interfaces: 1 x console RJ-45 management ¦ 1 x management RJ-45 ¦ 20 x Gigabit LAN SFP ¦ 4 x Gigabit LAN RJ-45/SFP ¦ 4 x 10Gbit LAN SFP+ - Power
Power Device: Internal power supply Installed Qty: 2 Max Supported Qty: 2 Voltage Required: AC 120/230 V (50/60 Hz) Power Consumption Operational: 60 Watt - Miscellaneous
Rack Mounting Kit: Included Compliant Standards: FCC Class A certified, UL Localization: North America - Dimensions & Weight
Width: 17.4 in Depth: 8.3 in Height: 1.7 in Weight: 2.87 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: -4 °F Max Operating Temperature: 140 °F Humidity Range Operating: 5 - 90% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 43222612 |
| Part# | TNI-SM24DP4XA-NA |
| MFG Part# | SM24DP4XA-NA |
| UPC | 648177043446 |
| Device Type | Switch - 28 ports - managed |
| Enclosure Type | Rack-mountable 1U |
| Remote Management Protocol | CLI, HTTP, SNMP 1, SNMP 2c, SNMP 3, Telnet, TFTP |
| Encryption Algorithm | SSL |
