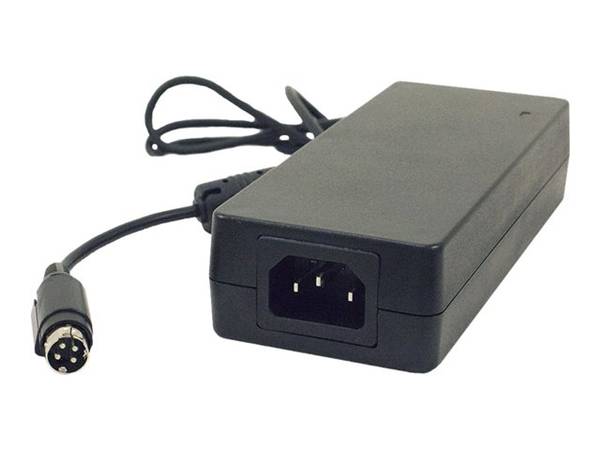

TRANSITION PS 90W 48V LEVEL 6 ADAPTR 11803217
SKU
11803217
Category: Power Adapters
- Primary Information
Product Description: Transition Networks Industrial Power Supply - power adapter - 90 Watt Device Type: Power adapter - active Power Factor Correction (PFC) - external Weight: 15.87 oz Localization: North America Input Voltage: AC 90-264/ DC 127-370 V Output Voltage: 48 V Power Capacity: 90 Watt Input Connectors: 1 x power IEC 60320 C14 Dimensions (WxDxH): 5.7 in x 2.4 in x 1.3 in - General
Device Type: Power adapter - active Power Factor Correction (PFC) - external Localization: North America - Power Device
Input Voltage: AC 90-264/ DC 127-370 V Frequency Required: 47 - 63 Hz Input Connectors: 1 x power IEC 60320 C14 Output Voltage: 48 V Max Electric Current: 1.87 A Power Capacity: 90 Watt Efficiency: 91% Power Factor (PF): 0.95 - Miscellaneous
MTBF: 348,700 hours Features: LED indicator, overheat protection, overvoltage protection, overload protection, short-circuit protection Compliant Standards: TUV, CISPR 22 Class B, BSMI CNS 13438 Class B, EN 61000-3-2, EN 61000-3-3, EN55022 Class B, AS/NZS 60950-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, FCC Part 15, EN 61000-4-5, EN 61000-4-11, EN 61000-4-8, UL 94 V-0, UL 60950-1, EN 60950-1, PSE Mark, BSMI CNS 14336, GB 4943, CSA 22.2, GB 9254, MIL-HDBK-217F - Environmental Parameters
Min Operating Temperature: -22 °F Max Operating Temperature: 158 °F Humidity Range Operating: 20 - 90% (non-condensing) - Dimensions & Weight
Width: 5.7 in Depth: 2.4 in Height: 1.3 in Weight: 15.87 oz - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121006
| BRANDS | TRANSITION NETWORKS |
|---|---|
| UNSPSC | 39121006 |
| Part# | TNI-25148-NA |
| MFG Part# | 25148-NA |
| UPC | 648177040834 |
| Device Type | Power adapter - active Power Factor Correction (PFC) - external |
| Efficiency | 91% |
