TRENDNET 5-PORT INDUSTRIALGIGABIT POE++ POWERED DIN-RAIL SWITCH WITH POE PASS-THROUGH 7273083

SKU
7273083

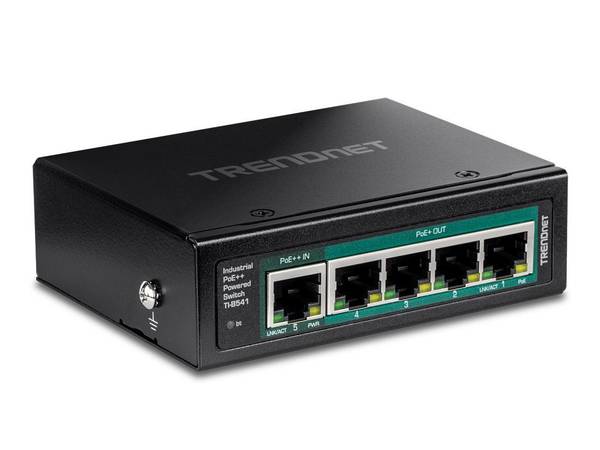

main product photo
CA$241.61
5-Port IndustrialGigabit PoE++ Powered DIN-Rail Switch with PoE Pass-Through





buy now pay later
Category: Hubs & Switches
  • Primary Information
    Product Description: TRENDnet TI-B541 - switch - industrial, with PoE pass-through - 5 ports - TAA Compliant
    Device Type: Switch - 5 ports
    Subtype: Gigabit Ethernet
    Ports: 1 x 10/100/1000 (PoE++ input) + 4 x 10/100/1000 (PoE+)
    Power Over Ethernet (PoE): PoE+
    PoE Budget: 65 W
    Performance: Switching capacity: 10 Gbps ¦ Forwarding rate (64‑byte packets): 7.44 Mpps
    MAC Address Table Size: 2K entries
    Jumbo Frame Support: 9KB
    Features: Auto-negotiation, half duplex mode, full duplex mode, 1MB packet buffer, metal housing, ground points
    Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt
    Dimensions (WxDxH): 4 in x 3.1 in x 1.2 in
    Weight: 5.64 oz
    TAA Compliant: Yes
    Manufacturer Warranty: Limited lifetime warranty
  • General
    Device Type: Switch - 5 ports
    Enclosure Type: DIN rail mountable, wall-mountable
    Subtype: Gigabit Ethernet
    Ports: 1 x 10/100/1000 (PoE++ input) + 4 x 10/100/1000 (PoE+)
    Power Over Ethernet (PoE): PoE+
    PoE Budget: 65 W
    Performance: Switching capacity: 10 Gbps ¦ Forwarding rate (64‑byte packets): 7.44 Mpps
    MAC Address Table Size: 2K entries
    Jumbo Frame Support: 9KB
    Features: Auto-negotiation, half duplex mode, full duplex mode, 1MB packet buffer, metal housing, ground points
    Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3x, IEEE 802.3at, IEEE 802.3bt
    Status Indicators: PoE, link/activity
  • Expansion / Connectivity
    Interfaces: 4 x 10/100/1000 Base-T (PoE+) RJ-45
  • Miscellaneous
    MTBF: 537,083 hours
    Compliant Standards: IEC 61000-4-2, IEC 61000-4-4, IEC 61000-4-5, FCC, LVD, IP30, NDAA
    TAA Compliant: Yes
  • Dimensions & Weight
    Width: 4 in
    Depth: 3.1 in
    Height: 1.2 in
    Weight: 5.64 oz
  • Manufacturer Warranty
    Service & Support: Limited warranty - lifetime
  • Environmental Parameters
    Min Operating Temperature: -40 °F
    Max Operating Temperature: 167 °F
    Humidity Range Operating: 95% (non-condensing)
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 43222612
More Information
BRANDS TRENDNET
UNSPSC 43222612
Part# TEI-TI-B541
MFG Part# TI-B541
UPC 710931162592
Device Type Switch - 5 ports
Enclosure Type DIN rail mountable, wall-mountable
