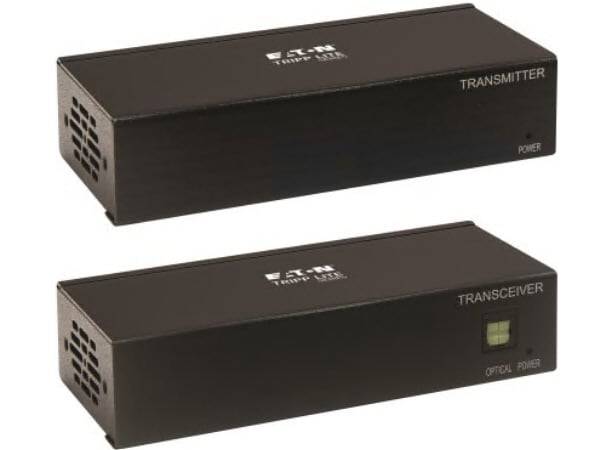

TRIPP DISPLAYPORT OVER CAT6 EXTENDER KIT TRANSMITTER RECEIVER REPEATER 4K 4/4/4 POC 230 FT 701 M TAA 6779429
SKU
6779429
CA$563.88
Supports UHD resolutions up to 4K @ 30 Hz (4:4:4) for crystal-clear video. Power over Cable (PoC) technology provides power to either unit via Cat6 cable - Video Extender - Wired - 230feet
Category: Repeaters & Transceivers
- Primary Information
Product Description: Eaton Tripp Lite Series DisplayPort over Cat6 Extender Kit, Transmitter and Receiver with Repeater, 4K, 4:4:4, PoC, 230 ft. (70.1 m), TAA - video/audio extender - TAA Compliant Device Type: Video/audio extender Form Factor: Wall / pole mountable / rack mountable Localization: Australia, North America, United Kingdom, Europe Transmission Medium: CAT 6 Max Transfer Distance: 230 ft Power Over Ethernet (PoE): PoC Power: AC 100-240 V TAA Compliant: Yes Manufacturer Warranty: 1-year warranty - General
Device Type: Video/audio extender Form Factor: Wall / pole mountable / rack mountable Color: Black Localization: Australia, North America, United Kingdom, Europe - Networking
Connectivity Technology: Wired Max Resolution: 3840 x 2160 @ 60 Hz Max Transfer Distance: 230 ft Status Indicators: Power, active, connection status Features: 3D support, 4K resolution support, 7.1 channel audio support, power over cable (PoC), HDR support, 4:4:4 chroma subsampling support, 36-bit True Color support, LPCM 2.0 support, LPCM 5.1 support, LPCM 7.1 support Compliant Standards: HDCP 2.2, HDCP 1.4 - Expansion / Connectivity
Interfaces: 1 x DisplayPort (input) female ¦ 1 x HDMI (output) - Type A female ¦ 1 x DisplayPort (output) female ¦ 1 x network (input) - RJ-45 female ¦ 2 x network (output) - RJ-45 female ¦ 1 x TOSLINK (receiver) female - Miscellaneous
Included Accessories: 4 power plug adapters Cables Included: Power cable - 4.5 ft Mounting Kit: Included Compliant Standards: DisplayPort 1.2a, CCC, GS, TUV, UL, cUL, FCC, RoHS, REACH TAA Compliant: Yes - Power
Power Over Ethernet (PoE): PoC Power Device: External power adapter Voltage Required: AC 100-240 V (50/60 Hz) - Dimensions & Weight
Dimensions (WxDxH) / Weight Details: Receiver: 4.5 in x 2.5 in x 1.1 in / 15.9 oz ¦ Transmitter: 4.5 in x 2.5 in x 1.1 in / 15.9 oz - Dimensions & Weight (Shipping)
Shipping Width: 10.2 in Shipping Depth: 6.5 in Shipping Height: 2.2 in - Manufacturer Warranty
Service & Support: Limited warranty - 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 85% (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222608
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 43222608 |
| Part# | TRP-B127A-111-BDTD |
| MFG Part# | B127A-111-BDTD |
| UPC | 37332263964 |
| Max Transfer Distance | 230 ft |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Device Type | Video/audio extender |
| Connectivity Technology | Wired |
| Form Factor | Wall / pole mountable / rack mountable |
| Color | Black |
