TRIPP ETHERNET SWITCH 16-PORT 10/100/1000 MBPS 6784086
SKU
6784086
CA$901.32
Only 1 left

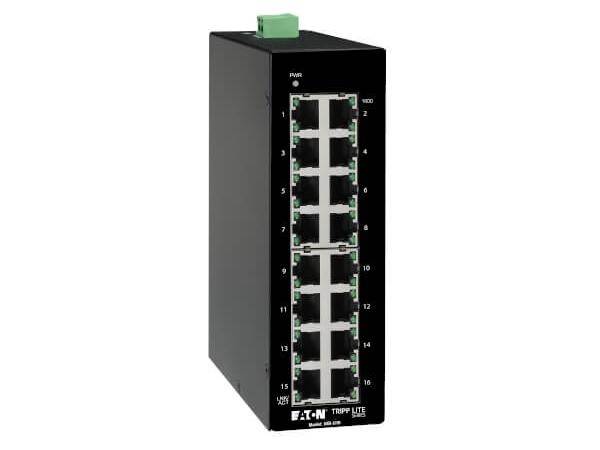

Tripp Lite series 16-Port Unmanaged Industrial Gigabit Ethernet Switch - 10/100/1000 Mbps, DIN Mount, TAA
Category: Hubs & Switches
- Primary Information
Product Description: Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 16-Port - 10/100/1000 Mbps, DIN Mount - switch - 16 ports - unmanaged - TAA Compliant Device Type: Switch - 16 ports - unmanaged Ports: 16 x 10/100/1000 Performance: Switching capacity: 32 Gbps MAC Address Table Size: 8000 entries Jumbo Frame Support: 10000 bytes Features: Metal housing, MAC address learning, auto-uplink (auto MDI/MDI-X), flow control, auto-negotiation, rugged Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab Power: DC 12 - 48 V Dimensions (WxDxH): 4.7 in x 1.9 in x 6.3 in Weight: 31.74 oz Color: Black TAA Compliant: Yes Manufacturer Warranty: 3-year warranty - General
Device Type: Switch - 16 ports - unmanaged Enclosure Type: DIN rail mountable Ports: 16 x 10/100/1000 Performance: Switching capacity: 32 Gbps MAC Address Table Size: 8000 entries Jumbo Frame Support: 10000 bytes Features: Metal housing, MAC address learning, auto-uplink (auto MDI/MDI-X), flow control, auto-negotiation, rugged Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab Status Indicators: Power, LAN, link/activity, transmit, receive - Expansion / Connectivity
Interfaces: 16 x 10/100/1000 Base-T RJ-45 - Power
Power Device: External power adapter Voltage Required: DC 12 - 48 V Power Consumption Operational: 16 Watt - Miscellaneous
Color: Black Included Accessories: DIN-rail clip Compliant Standards: RoHS, REACH, IEEE 802.3, IEEE 802.3u, Plug and Play, FCC Part 15, EN 55011, EN 61000-6-4, EN 61000-6-2, EN 55032, EN55024 TAA Compliant: Yes - Dimensions & Weight
Width: 4.7 in Depth: 1.9 in Height: 6.3 in Weight: 31.74 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 167 °F Humidity Range Operating: 5 - 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 185 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 43222612 |
| Part# | TRP-NGI-U16 |
| MFG Part# | NGI-U16 |
| UPC | 37332265852 |
| Device Type | Switch - 16 ports - unmanaged |
| Color | Black |
| Enclosure Type | DIN rail mountable |
