TRIPP ETHERNET SWITCH 8-PORT 10/100 MBPS 6784084
SKU
6784084
Category: Hubs & Switches
- Primary Information

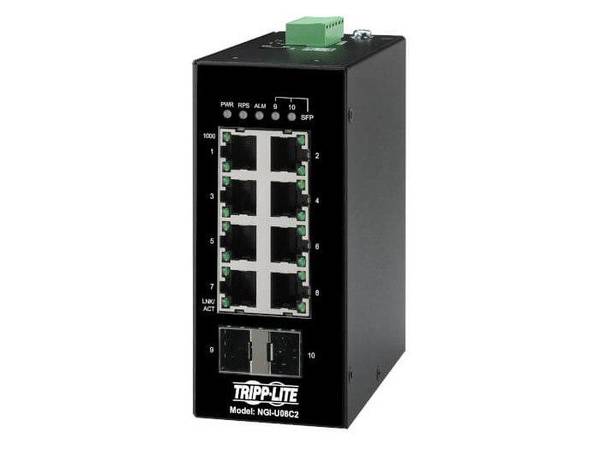

Product Description: Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 8-Port - 10/100/1000 Mbps, 2 GbE SFP Slots, DIN Mount - switch - 8 ports - unmanaged - TAA Compliant Device Type: Switch - 8 ports - unmanaged Subtype: Gigabit Ethernet Ports: 8 x 10/100/1000 + 2 x Gigabit SFP (uplink) Performance: Switching capacity: 20 Gbps MAC Address Table Size: 8000 entries Jumbo Frame Support: 10000 bytes Features: Auto-negotiation, rugged, flow control, metal housing, full duplex mode, auto-uplink (auto MDI/MDI-X) Compliant Standards: IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1p Power: DC 24 - 48 V Dimensions (WxDxH): 2 in x 4.6 in x 3.9 in Weight: 19.68 oz Color: Black TAA Compliant: Yes Manufacturer Warranty: 3-year warranty - General
Device Type: Switch - 8 ports - unmanaged Enclosure Type: DIN rail mountable Subtype: Gigabit Ethernet Ports: 8 x 10/100/1000 + 2 x Gigabit SFP (uplink) Performance: Switching capacity: 20 Gbps MAC Address Table Size: 8000 entries Jumbo Frame Support: 10000 bytes Features: Auto-negotiation, rugged, flow control, metal housing, full duplex mode, auto-uplink (auto MDI/MDI-X) Compliant Standards: IEEE 802.3x, IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3z, IEEE 802.1p Status Indicators: Status - Expansion / Connectivity
Interfaces: 8 x 10/100/1000 Base-T RJ-45 ¦ 2 x 1000Base-X SFP - Power
Voltage Required: DC 24 - 48 V - Miscellaneous
Color: Black Included Accessories: DIN-rail clip Compliant Standards: RoHS, REACH, FCC TAA Compliant: Yes - Dimensions & Weight
Width: 2 in Depth: 4.6 in Height: 3.9 in Weight: 19.68 oz - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 167 °F Humidity Range Operating: 5 - 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 176 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 43222612 |
| Part# | TRP-NGI-U08C2 |
| MFG Part# | NGI-U08C2 |
| UPC | 37332265906 |
| Device Type | Switch - 8 ports - unmanaged |
| Color | Black |
| Enclosure Type | DIN rail mountable |
