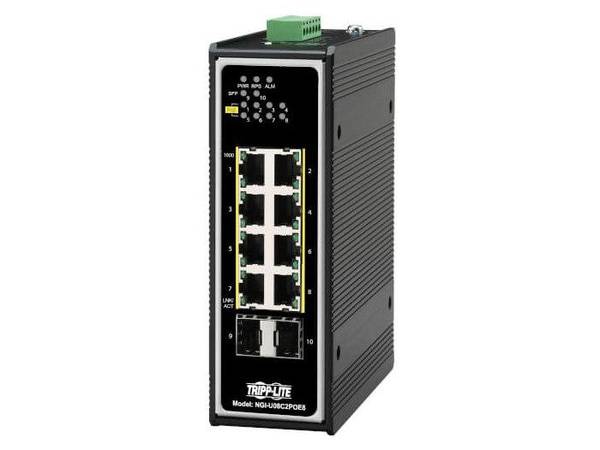

TRIPP GBE SWITCH 8-PORT POE 10/100/1000 MBPS 6784085
SKU
6784085
- Primary Information
Product Description: Eaton Tripp Lite series Unmanaged Industrial Gigabit Ethernet Switch 8-Port - 10/100/1000 Mbps, PoE+ 30W, 2 GbE SFP Slots, DIN Mount - switch - 8 ports - unmanaged - TAA Compliant Device Type: Switch - 8 ports - unmanaged Ports: 8 x 10/100/1000 + 2 x 1000Base-X SFP (uplink) Power Over Ethernet (PoE): PoE+ PoE Budget: 240 W Performance: Switching capacity: 20 Gbps MAC Address Table Size: 8K entries Jumbo Frame Support: 10000 bytes Features: Metal housing, MAC address learning, auto-uplink (auto MDI/MDI-X), flow control, auto-negotiation, CoS Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at Power: DC 24 - 57 V Dimensions (WxDxH): 6.3 in x 4.7 in x 2 in Weight: 32.45 oz Color: Black TAA Compliant: Yes Manufacturer Warranty: 3-year warranty - General
Device Type: Switch - 8 ports - unmanaged Enclosure Type: DIN rail mountable Ports: 8 x 10/100/1000 + 2 x 1000Base-X SFP (uplink) Power Over Ethernet (PoE): PoE+ PoE Budget: 240 W Performance: Switching capacity: 20 Gbps MAC Address Table Size: 8K entries Jumbo Frame Support: 10000 bytes Features: Metal housing, MAC address learning, auto-uplink (auto MDI/MDI-X), flow control, auto-negotiation, CoS Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3z, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at Status Indicators: Power, PoE, LAN, data, transmit, receive - Expansion / Connectivity
Interfaces: 8 x 10/100/1000 Base-T (PoE) RJ-45 ¦ 2 x 1000Base-X SFP - Power
Voltage Required: DC 24 - 57 V - Miscellaneous
Color: Black Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1p, IEEE 802.3af, IEEE 802.3at, FCC, RoHS, REACH, Plug and Play TAA Compliant: Yes - Dimensions & Weight
Width: 6.3 in Depth: 4.7 in Height: 2 in Weight: 32.45 oz - Dimensions & Weight (Shipping)
Shipping Width: 9.2 in Shipping Depth: 7.2 in Shipping Height: 2.4 in - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 14 °F Max Operating Temperature: 140 °F Humidity Range Operating: 5 - 95% (non-condensing) Min Storage Temperature: -40 °F Max Storage Temperature: 185 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 43222612 |
| Part# | TRP-NGI-U08C2POE8 |
| MFG Part# | NGI-U08C2POE8 |
| UPC | 37332266040 |
| Device Type | Switch - 8 ports - unmanaged |
| Color | Black |
| Enclosure Type | DIN rail mountable |
