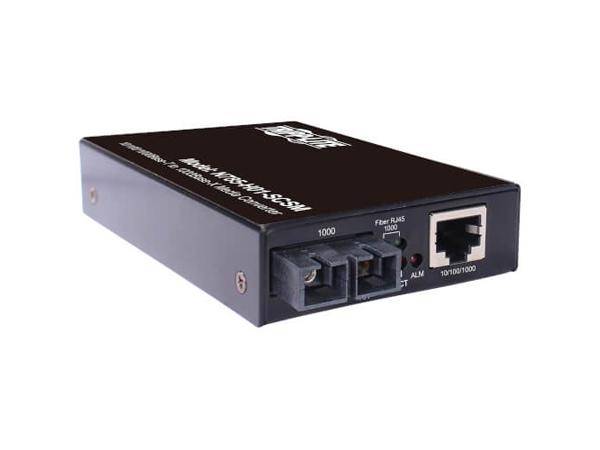

TRIPP HARDENED GIGABIT COPPER TO FIBER MEDIA CONVERTER 10/100/1000 MBPS RJ45/SC SINGLEMODE 10 TO 60C 10 KM 6.2 MI 6823653
SKU
6823653
- Primary Information
Product Description: Tripp Lite Hardened Gigabit Copper to Fiber Media Converter - 10/100/1000 Mbps, RJ45/SC Singlemode, -10° to 60°C, 10 km (6.2 mi.) - fiber media converter - 10Mb LAN, 100Mb LAN, 1GbE - TAA Compliant Device Type: Fiber media converter - RJ-45 / SC single-mode Form Factor: External Cabling Type: 10Base-T, 100Base-TX, 1000Base-T Data Transfer Rate: 1 Gbps Optical Wave Length: 1310 nm Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE Transmission Medium: CAT 5/5e/6/6a Max Transfer Distance: 6.2 miles Power Over Ethernet (PoE): PoE Power: AC 100-240 V Dimensions (WxDxH): 2.9 in x 4.3 in x 0.9 in Weight: 8.46 oz TAA Compliant: Yes Manufacturer Warranty: 2-year warranty - General
Device Type: Fiber media converter Form Factor: External Color: Black - Networking
Connectivity Technology: Wired Cabling Type: 10Base-T, 100Base-TX, 1000Base-T Data Link Protocol: 10Mb LAN, 100Mb LAN, 1GbE Data Transfer Rate: 1 Gbps Optical Wave Length: 1310 nm Max Transfer Distance: 6.2 miles Status Indicators: Power, link/activity, status Features: Auto-uplink (auto MDI/MDI-X), hardened Compliant Standards: IEEE 802.3ab, IEEE 802.3, IEEE 802.3u, IEEE 802.3z - Expansion / Connectivity
Interfaces: 1 x Ethernet 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 1 x Ethernet 1000 - SC single-mode female x 2 - Miscellaneous
Included Accessories: L-shape rack mount brackets, 2 x connector caps Mounting Kit: Included Compliant Standards: RoHS, FCC, LPS, UL, WEEE, cUL TAA Compliant: Yes - Power
Power Over Ethernet (PoE): PoE Power Device: External power adapter Voltage Required: AC 100-240 V (50/60 Hz) Power Consumption Operational: 1.8 Watt - Dimensions & Weight
Width: 2.9 in Depth: 4.3 in Height: 0.9 in Weight: 8.46 oz - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 14 °F Max Operating Temperature: 140 °F Humidity Range Operating: 5 - 95% RH (non-condensing) - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43201553
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 43201553 |
| Part# | TRP-N785-H01-SCSM |
| MFG Part# | N785-H01-SCSM |
| UPC | 37332267054 |
| Max Transfer Distance | 6.2 miles |
| Device Type | Fiber media converter |
| Connectivity Technology | Wired |
| Data Transfer Rate | 1 Gbps |
| Form Factor | External |
| Data Link Protocol | 100Mb LAN, 10Mb LAN, 1GbE |
| Color | Black |
