TRIPP HDMI OVER CAT6 EXTENDER KIT BOX TRANSMITTER/WALL PLATE RECEIVER 4K 60 HZ 4/4/4 IR POC HDR HDCP 22 230 FT TAA 6779434
SKU
6779434
- Primary Information

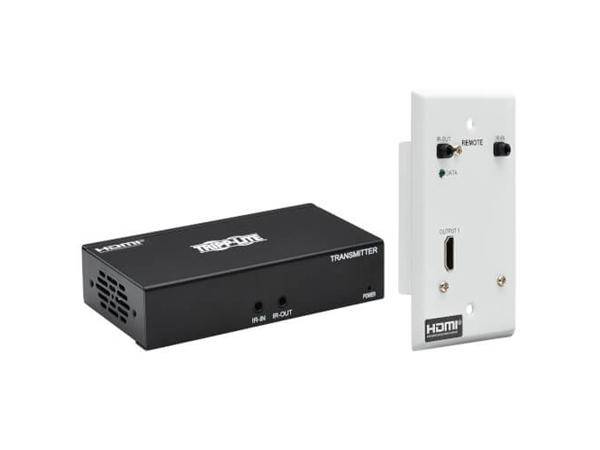

Product Description: Eaton Tripp Lite Series HDMI over Cat6 Extender Kit, Box Transmitter/Wall Plate Receiver, 4K 60 Hz, 4:4:4, IR, PoC, HDR, HDCP 2.2, 230 ft., TAA - video/audio extender - HDMI - TAA Compliant Device Type: Video/audio extender Form Factor: Wall mountable Localization: Australia, North America, United Kingdom, Europe Data Link Protocol: HDMI Transmission Medium: CAT 6 Max Transfer Distance: 230 ft Power Over Ethernet (PoE): PoC Power: AC 100-240 V TAA Compliant: Yes Manufacturer Warranty: 1-year warranty Designed For: P/N: B127A-1A0-FH - General
Device Type: Video/audio extender Form Factor: Wall mountable Color: White, black Localization: Australia, North America, United Kingdom, Europe - Networking
Connectivity Technology: Wired Data Link Protocol: HDMI Max Resolution: 3840 x 2160 @ 60 Hz Max Transfer Distance: 230 ft Status Indicators: Data Features: 3D support, 4K resolution support, 7.1 channel audio support, power over cable (PoC), Dolby TrueHD support, DTS-HD support, HDR support, zero transition delay, 4:4:4 chroma subsampling support, 36-bit True Color support Compliant Standards: HDCP 2.2 - Expansion / Connectivity
Interfaces: 1 x audio / video (transmitter input) - 19 pin HDMI Type A female ¦ 1 x audio / video (local unit) - 19 pin HDMI Type A female ¦ 1 x network (transmitter) - RJ-45 female ¦ 2 x IR (input) - phone 3.5 mm female ¦ 2 x IR (output) - phone 3.5 mm female ¦ 1 x network (receiver) - RJ-45 female ¦ 1 x audio / video (receiver output) - 19 pin HDMI Type A female - Miscellaneous
Included Accessories: 2 mounting brackets, 6 screws, 4 power plug adapters Cables Included: 1 x power cable - 4.5 ft ¦ 2 x IR cable Compliant Standards: CCC, FCC, GS, TUV, UL, cUL, RoHS, REACH TAA Compliant: Yes - Power
Power Over Ethernet (PoE): PoC Power Device: External power adapter Installed Qty: 1 Voltage Required: AC 100-240 V (50/60 Hz) - Dimensions & Weight
Dimensions (WxDxH) / Weight Details: Transmitter: 4.5 in x 2.5 in x 1.1 in / 22.9 oz ¦ Receiver: 2.8 in x 1.3 in x 4.5 in / 22.9 oz - Manufacturer Warranty
Service & Support: Limited warranty - 1 year - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 85% (non-condensing) - Compatibility Information
Designed For: P/N: B127A-1A0-FH - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 32101529
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 32101529 |
| Part# | TRP-B127A-1A1-BHFH |
| MFG Part# | B127A-1A1-BHFH |
| UPC | 37332264008 |
| Max Transfer Distance | 230 ft |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Device Type | Video/audio extender |
| Connectivity Technology | Wired |
| Form Factor | Wall mountable |
| Data Link Protocol | HDMI |
| Color | black, White |
