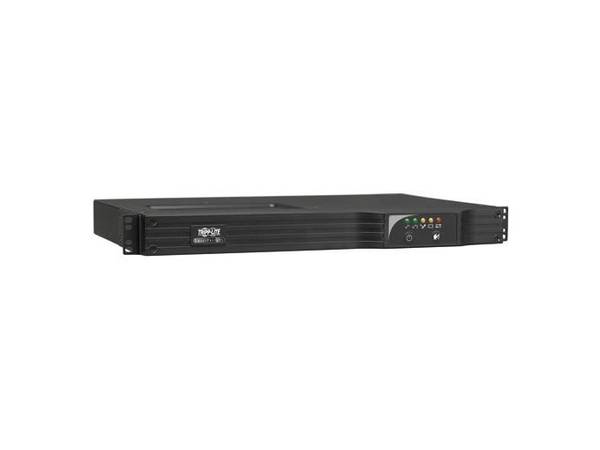

TRIPP LITE 1000VA LINE INTERACTIVE 800W W INSTALLED 5516029
SKU
5516029
CA$3,255.72
SMART1000RM1UN - UPS - Rack-Mountable,Vertical (0U) - line-interactive - 120V - 800Watt - 1000VA - 15A - USB - (6) 5-15R - 2-year warranty
Category: UPS
- Primary Information
Product Description: Tripp Lite UPS Smart 1000VA 800W Rackmount AVR 120V Preinstalled WEBCARDLX Pure Sine Wave USB DB9 SNMP 1URM - UPS - 800 Watt - 1000 VA - with SNMP/Web management accessory card Device Type: UPS - rack-mountable Rack Size: 1U Weight: 0.51 oz Input Voltage: AC 120 V Output Voltage: AC 120 V Power Capacity: 800 Watt / 1000 VA Input Connectors: 1 x power NEMA 5-15 Output connectors: 4 x power NEMA 5-15 (UPS and surge) Run Time (Up To): 4 min at full load Networking: RS-232, USB Dimensions (WxDxH): 17.5 in x 16.7 in x 1.7 in Manufacturer Warranty: 3-year warranty with product registration Bundled with: SNMP/Web management accessory card - General
Device Type: UPS - rack-mountable Height (Rack Units): 1U Bundled with: SNMP/Web management accessory card - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Frequency Provided: 60 Hz Input Connectors: 1 x power NEMA 5-15 Power Output Connectors Details: 4 x power NEMA 5-15 (UPS and surge) Output Voltage: AC 120 V 60 Hz Power Capacity: 800 Watt / 1000 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 450 Joules Circuit Protection: Circuit breaker Efficiency: 99% - Battery
Voltage Provided: 24 V Run Time (Up To): 4 min at full load ¦ 14 min at half load - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x EPO (emergency power off) Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: USB cable - external ¦ Serial cable - external ¦ Power cable 10 ft ¦ EPO cable - external Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Audible alarm, Automatic Voltage Regulation (AVR), LED indicators, overvoltage protection, cold-start function, cooling fan Compliant Standards: CSA, NOM, UL 1778, RoHS, FCC Part 15 A - Software / System Requirements
Software Included: TrippLite PowerAlert - Manufacturer Warranty
Service & Support: Limited warranty - 3 years with product registration - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) - Dimensions & Weight
Width: 17.5 in Depth: 16.7 in Height: 1.7 in Weight: 0.51 oz - Dimensions & Weight (Shipping)
Shipping Width: 23.5 in Shipping Depth: 22.5 in Shipping Height: 6.3 in Shipping Weight: 35.93 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMART1000RM1UN |
| MFG Part# | SMART1000RM1UN |
| UPC | 37332190741 |
| Device Type | UPS - rack-mountable |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Efficiency | 99% |
| Circuit Protection | Circuit breaker |
