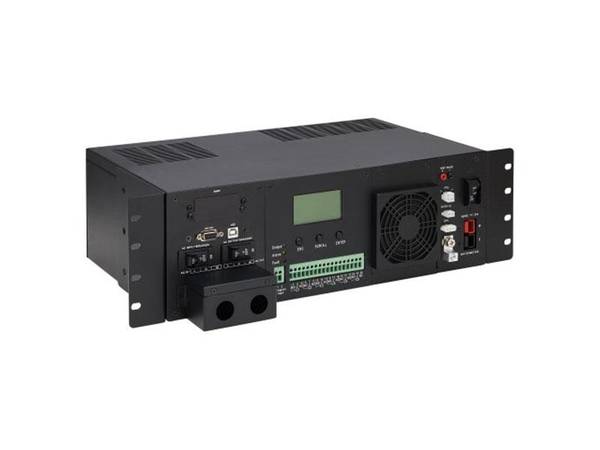

TRIPP LITE 120VAC 24VDC 1500VA 1200W NETWORK UPS 6661475
SKU
6661475
CA$3,531.84
120VAC 24VDC 1500VA 1200W Extreme Temperature Network UPS for Industrial and Traffic Networks, 3U, Hardwire
Category: UPS
- Primary Information
Product Description: Tripp Lite UPS Smart 1500VA 1200W Extreme Temperature AVR 24VDC LCD USB 3U for Industrial and Traffic Networks, Hardwire - UPS - 1200 Watt - 1500 VA Device Type: UPS - rack-mountable Rack Size: 19" - 3U Weight: 32.41 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 120 V Power Capacity: 1200 Watt / 1500 VA Input Connectors: 1 x hardwire Battery: Expandable Included Accessories: External battery connection kit, 2 x AC hardwire strain reliefs, 8 M4 mounting screws, 4 M6 mounting screws, 2 mounting brackets Dimensions (WxDxH): 15.7 in x 9.4 in x 5.2 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - rack-mountable Height (Rack Units): 3U Rack Size: 19" - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Input Connectors: 1 x hardwire Output Voltage: AC 120 V 50/60 Hz Max Electric Current: 22 A Power Capacity: 1200 Watt / 1500 VA Output Waveform: Sinewave Surge Energy Rating: 474 Joules Circuit Protection: Circuit breaker Efficiency: 95% at 100% AC mode Power Factor (PF): 0.8 - Battery
Type: Expandable Voltage Provided: DC 24 V Transfer Time: 10 ms - Miscellaneous
Included Accessories: External battery connection kit, 2 x AC hardwire strain reliefs, 8 M4 mounting screws, 4 M6 mounting screws, 2 mounting brackets Cables Included: USB cable ¦ Battery temperature sensor cable ¦ External fan power adapter cable Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: 2 post rack mountable, 4 post rack mountable, black-out protection, brown-out protection, noise filtering, overvoltage protection, Automatic Voltage Regulation (AVR), undervoltage protection, LCD display, audible alarm, LED indicators Compliant Standards: CSA, NOM, UL 1778 5th edition R10.17, FCC CFR47 Part 15 B, ICES-003, CAN/CSA C22.2 No. 107.3:2014 3rd Edition - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: -40 °F Max Operating Temperature: 176 °F Humidity Range Operating: 95% (non-condensing) Sound Emission: 52.4 dB - Dimensions & Weight
Width: 15.7 in Depth: 9.4 in Height: 5.2 in Weight: 32.41 lbs - Dimensions & Weight (Shipping)
Shipping Width: 23.2 in Shipping Depth: 15.6 in Shipping Height: 9.8 in Shipping Weight: 32.61 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMART1524ET |
| MFG Part# | SMART1524ET |
| UPC | 37332241214 |
| Device Type | UPS - rack-mountable |
| UPS Technology | Line interactive |
| Type | Expandable |
| Efficiency | 95% at 100% AC mode |
| Circuit Protection | Circuit breaker |
