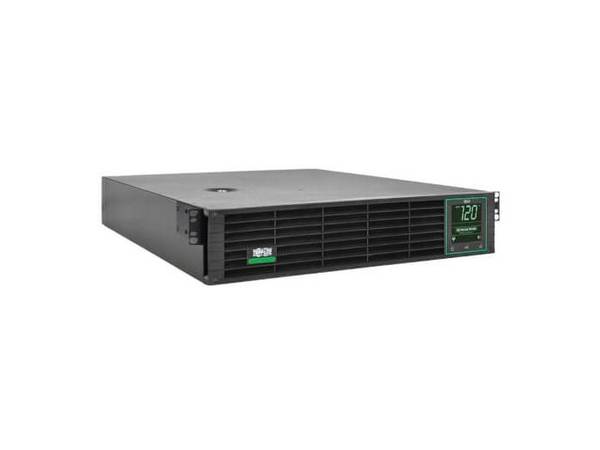

TRIPP LITE 1500VA UPS SMART LITHIUM ION LIFEPO4 2U 6198236
SKU
6198236
CA$3,932.95
SmartPro UPS, Lithium Battery Backup - 120V 1500VA / 1440W Line Interactive, 2U, Sine Wave, LCD - (8) 5-15R - 5-15P - DB9 Serial, USB - 120V AC - 5-year limited warranty
Category: UPS
- Primary Information
Product Description: Tripp Lite 1500VA 1440W UPS Smart Lithium Ion LiFePO4 LCD USB DB9 2URM - UPS - 1440 Watt - 1500 VA - Li Device Type: UPS - rack-mountable Rack Size: 19" - 2U Weight: 41.78 lbs Input Wiring: 1-phase Input Voltage: AC 120 V Output Voltage: AC 120 V ± 5% Power Capacity: 1440 Watt / 1500 VA Input Connectors: 1 x power NEMA 5-15P Output connectors: 4 x power NEMA 5-15R ¦ 4 x power NEMA 5-15/20R Battery: Lithium Run Time (Up To): 7.1 min at full load Networking: RS-232, USB Remote Management Protocol: SNMP Dimensions (WxDxH): 17.3 in x 19.5 in x 3.4 in Manufacturer Warranty: 5-year warranty - General
Device Type: UPS - rack-mountable Height (Rack Units): 2U Rack Size: 19" - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Input Voltage Range: AC 83 - 145 V Frequency Provided: 60 Hz Input Wiring: 1-phase Input Connectors: 1 x power NEMA 5-15P Power Output Connectors Details: 4 x power NEMA 5-15R ¦ 4 x power NEMA 5-15/20R Output Voltage: AC 120 V ± 5% - 60 Hz Power Capacity: 1440 Watt / 1500 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 570 Joules Circuit Protection: Circuit breaker Efficiency: 97% Power Factor (PF): 0.96 - Battery
Technology: Lithium Voltage Provided: 48 V Run Time (Up To): 7.1 min at full load ¦ 15.4 min at half load Recharge Time: 1.4 hours Transfer Time: 5 ms - Networking
Remote Management Interface: RS-232, USB Remote Management Protocol: SNMP - Expansion / Connectivity
Interfaces: 1 x EPO (emergency power off) ¦ 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - Miscellaneous
Cables Included: Power cable 10 ft ¦ USB cable - external ¦ Serial cable - external ¦ EPO cable - external Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Audible alarm, LCD display, Automatic Voltage Regulation (AVR), noise filtering, cold-start function, cooling fan, hot-swappable batteries, overvoltage correction, undervoltage correction, switched, energy efficient Compliant Standards: RoHS, FCC Part 15 A, EMI, CSA C22.2 No. 107.3.14, NOM, UL 1778 5th edition - Software / System Requirements
Software Included: TrippLite PowerAlert - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 45 dBA - Dimensions & Weight
Width: 17.3 in Depth: 19.5 in Height: 3.4 in Weight: 41.78 lbs - Dimensions & Weight (Shipping)
Shipping Width: 25.6 in Shipping Depth: 27.8 in Shipping Height: 10.2 in Shipping Weight: 55 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMART1500RM2UL |
| MFG Part# | SMART1500RM2UL |
| UPC | 37332213587 |
| Device Type | UPS - rack-mountable |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Efficiency | 97% |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | SNMP |
