TRIPP LITE 16 10/100/1000MBPS PORT GIGABIT L2 5710696
SKU
5710696
CA$896.44

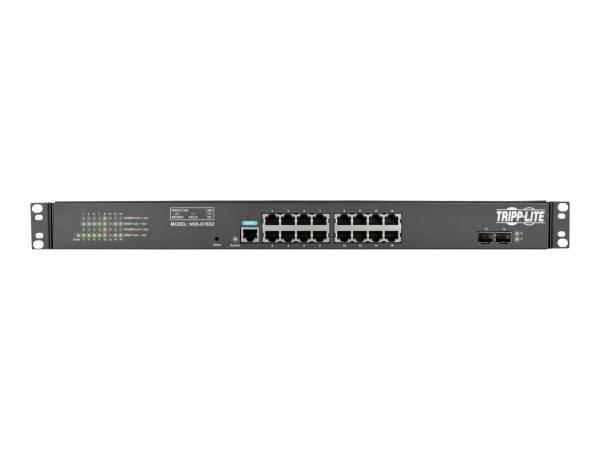

16 10/100/1000Mbps Port Gigabit L2 Web-Smart Managed Switch, 2 SFP Slots, 36 Gbps, Web, 8-Outlet 120V PDU/Surge Protect
Category: Hubs & Switches
- Primary Information
Product Description: Tripp Lite 16-Port Gigabit Ethernet Switch L2 Managed w/ 8-Outlet PDU 120V - switch - 16 ports - managed - rack-mountable Device Type: Switch - 16 ports - L2+ - managed Enclosure Type: Rack-mountable 1U Subtype: Gigabit Ethernet Ports: 16 x 10/100/1000 + 2 x shared Gigabit SFP Performance: Switching capacity: 36 Gbps MAC Address Table Size: 16000 entries Jumbo Frame Support: 10KB Remote Management Protocol: SNMP, RMON, HTTP, CLI Features: Auto-negotiation, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), full duplex mode, surge protection, STP support, RSTP support, DHCP snooping, ACL support, fanless, Port Security, IP-MAC binding, Energy Efficient Ethernet, tagged VLAN, metal housing, Storm Control Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3az Power: AC 120 V Dimensions (WxDxH): 17.3 in x 12.4 in x 1.7 in Weight: 8.49 lbs Color: Black Manufacturer Warranty: 5-year warranty - General
Device Type: Switch - 16 ports - L2+ - managed Enclosure Type: Rack-mountable 1U Subtype: Gigabit Ethernet Ports: 16 x 10/100/1000 + 2 x shared Gigabit SFP Performance: Switching capacity: 36 Gbps MAC Address Table Size: 16000 entries Jumbo Frame Support: 10KB Remote Management Protocol: SNMP, RMON, HTTP, CLI Features: Auto-negotiation, trunking, VLAN support, auto-uplink (auto MDI/MDI-X), full duplex mode, surge protection, STP support, RSTP support, DHCP snooping, ACL support, fanless, Port Security, IP-MAC binding, Energy Efficient Ethernet, tagged VLAN, metal housing, Storm Control Compliant Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3i, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.3az Built-in Devices: PDU with 8 NEMA 5-15R AC outlets Status Indicators: Status, link/activity, SFP - Expansion / Connectivity
Interfaces: 16 x 1000Base-T RJ-45 ¦ 2 x 1000Base-X SFP ¦ 1 x console RJ-45 - Power
Power Device: Internal power supply Voltage Required: AC 120 V - Miscellaneous
Color: Black Rack Mounting Kit: Included Compliant Standards: NOM, RoHS, UL 60950-1, FCC Part 15 A, REACH, UL 1449 Third Edition, CAN/CSA-C22.2 No. 60950-1 - Dimensions & Weight
Width: 17.3 in Depth: 12.4 in Height: 1.7 in Weight: 8.49 lbs - Manufacturer Warranty
Service & Support: Limited warranty - 5 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% (non-condensing) Min Storage Temperature: 14 °F Max Storage Temperature: 158 °F - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 43222612
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 43222612 |
| Part# | TRP-NSS-G16D2 |
| MFG Part# | NSS-G16D2 |
| UPC | 37332195470 |
| Device Type | Switch - 16 ports - L2+ - managed |
| Color | Black |
| Enclosure Type | Rack-mountable 1U |
| Remote Management Protocol | CLI, HTTP, RMON, SNMP |
