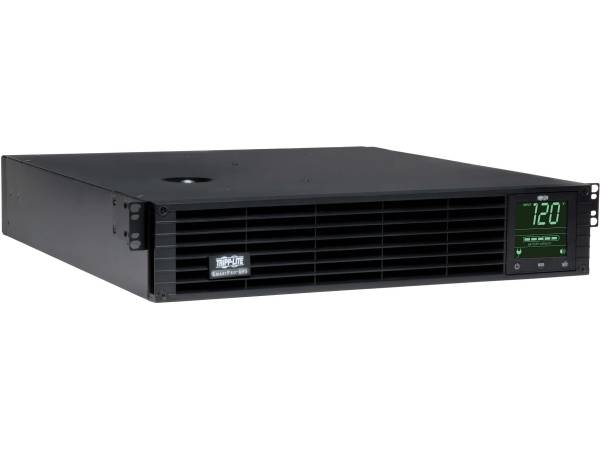

TRIPP LITE 2200VA 190W UPS 120V SINE WAVE 2U 5171485
SKU
5171485
CA$3,368.04
SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 2U, Extended Run, Network Card Options, LCD, USB, DB9
Category: UPS
- Primary Information
Product Description: Tripp Lite UPS Smart 2200VA 1920W Rackmount AVR 120V Pure Sine Wave Extended Run LCD USB DB9 2URM - UPS - 1.92 kW - 2200 VA Device Type: UPS - external Rack Size: 19" - 2U Weight: 64.15 lbs Input Voltage: AC 100/110/120 V Output Voltage: AC 100/110/120 V ± 5% Power Capacity: 1.92 kW / 2200 VA Input Connectors: 1 x power NEMA 5-20 Output connectors: 4 x power NEMA 5-15/20 ¦ 4 x power NEMA 5-15 Run Time (Up To): 4.5 min at full load Networking: RS-232, USB Dimensions (WxDxH): 17.5 in x 19 in x 3.5 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - external Height (Rack Units): 2U Rack Size: 19" - Power Device
UPS Technology: Line interactive Input Voltage: AC 100/110/120 V Input Voltage Range: AC 83 - 145 V Frequency Required: 50/60 Hz Input Connectors: 1 x power NEMA 5-20 Power Output Connectors Details: 4 x power NEMA 5-15/20 ¦ 4 x power NEMA 5-15 Output Voltage: AC 100/110/120 V ± 5% Power Capacity: 1.92 kW / 2200 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 570 Joules - Battery
Run Time (Up To): 4.5 min at full load ¦ 12 min at half load - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - 4 pin USB Type B Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: Power cable 10 ft Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Audible alarm Compliant Standards: CSA, NOM, UL 1778, RoHS, FCC Part 15 A - Software / System Requirements
Software Included: Drivers & Utilities - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) - Dimensions & Weight
Width: 17.5 in Depth: 19 in Height: 3.5 in Weight: 64.15 lbs - Dimensions & Weight (Shipping)
Shipping Width: 23.5 in Shipping Depth: 20 in Shipping Height: 9 in Shipping Weight: 72.09 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SM2200RMXL2UP |
| MFG Part# | SM2200RMXL2UP |
| UPC | 37332144348 |
| Device Type | UPS - external |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
