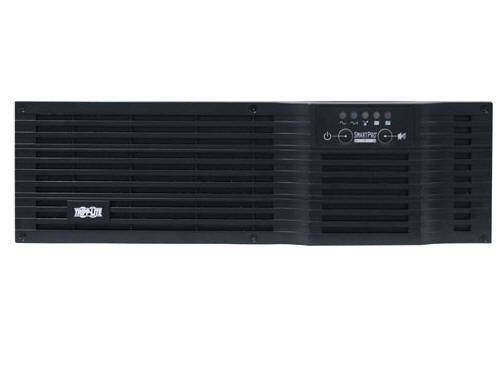

TRIPP LITE 2200VA UPS 120V-230V TAA/GSA 4732741
SKU
4732741
CA$4,611.36
TAA SmartPro 120V 2.2kVA 1.92kW Line-Interactive Sine Wave UPS, 3U, 120/230V input, Network Card Options, USB, DB9
Category: UPS
- Primary Information
Product Description: Tripp Lite UPS Smart 2200VA 1920W Rackmount AVR 120V / 230V Pure Sine Wave 3URM TAA GSA - UPS - 1.92 kW - 2200 VA - TAA Compliant Device Type: UPS - external Rack Size: 3U Weight: 104.28 lbs Input Voltage: AC 120/230 V Output Voltage: AC 120 V ± 5% Power Capacity: 1.92 kW / 2200 VA Input Connectors: 1 x power IEC 60320 C20 Output connectors: 4 x power NEMA 5-15 ¦ 4 x power NEMA 5-15/20 Battery: Lead acid expandable Battery Form Factor: Internal Run Time (Up To): 12 min at full load Networking: RS-232, USB TAA Compliant: TAA Compliant Dimensions (WxDxH): 17.5 in x 25.2 in x 5.2 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - external Battery Enclosure Type: Internal Height (Rack Units): 3U - Power Device
UPS Technology: Line interactive Input Voltage: AC 120/230 V Frequency Required: 50/60 Hz Input Connectors: 1 x power IEC 60320 C20 Power Output Connectors Details: 4 x power NEMA 5-15 ¦ 4 x power NEMA 5-15/20 Output Voltage: AC 120 V ± 5% Power Capacity: 1.92 kW / 2200 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 340 Joules Circuit Protection: Circuit breaker - Battery
Type: Expandable Technology: Lead acid Voltage Provided: 48 V Run Time (Up To): 12 min at full load ¦ 30 min at half load - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (USB) ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: 5 x power cable ¦ USB cable - external ¦ Serial cable - external Features: Audible alarm, emergency power off, Automatic Voltage Regulation (AVR), LED indicators Compliant Standards: CSA, NOM, UL 1778, RoHS, FCC Part 15 A TAA Compliant: Yes - Software / System Requirements
Software Included: TrippLite PowerAlert - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% - Dimensions & Weight
Width: 17.5 in Depth: 25.2 in Height: 5.2 in Weight: 104.28 lbs - Dimensions & Weight (Shipping)
Shipping Width: 59.8 in Shipping Depth: 50.8 in Shipping Height: 11.5 in Shipping Weight: 159.61 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SM2200RMDVTAA |
| MFG Part# | SM2200RMDVTAA |
| UPC | 37332156310 |
| Device Type | UPS - external |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Type | Expandable |
| Circuit Protection | Circuit breaker |
