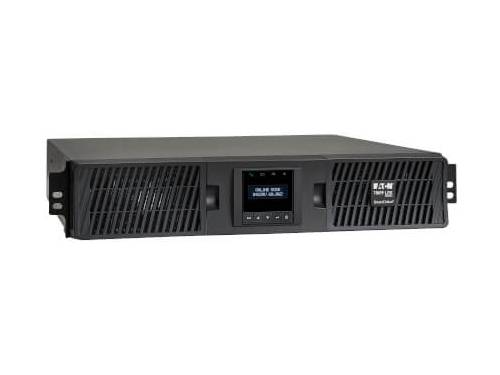

Product Description: | Eaton Tripp Lite Series Tripp Lite series SmartOnline 2000VA 1800W 120V Double-Conversion Sine Wave UPS - 7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, 2U Rack/Tower Battery Backup - UPS - 1800 Watt - 2200 VA |
Device Type: | UPS - external |
Rack Size: | 19" - 2U |
Weight: | 48.5 lbs |
Input Voltage: | AC 100/110/115/120/127 V |
Output Voltage: | AC 100/110/115/120/127 V |
Power Capacity: | 1800 Watt / 2200 VA |
Input Connectors: | 1 x power NEMA 5-20 |
Output connectors: | 6 x power NEMA 5-15/20 (UPS and surge) ¦ 1 x power NEMA L5-20 (UPS and surge) |
Battery: | Expandable |
Battery Form Factor: | Plug-in module |
Batteries Qty: | 1 |
Run Time (Up To): | 7.7 min at full load |
Networking: | RS-232, USB |
System Requirements: | Apple MacOS X, Microsoft Windows |
Dimensions (WxDxH): | 17.5 in x 19 in x 3.5 in |
Manufacturer Warranty: | 2-year warranty |
Device Type: | UPS - external |
Battery Enclosure Type: | Plug-in module |
Height (Rack Units): | 2U |
Rack Size: | 19" |
UPS Technology: | On-line |
Input Voltage: | AC 100/110/115/120/127 V |
Frequency Provided: | 50/60 Hz |
Input Connectors: | 1 x power NEMA 5-20 |
Power Output Connectors Details: | 6 x power NEMA 5-15/20 (UPS and surge) ¦ 1 x power NEMA L5-20 (UPS and surge) |
Output Voltage: | AC 100/110/115/120/127 V 50/60 Hz |
Max Electric Current: | 16 A |
Power Capacity: | 1800 Watt / 2200 VA |
Dataline Surge Protection: | Network/phone line - RJ-45/RJ-11 - 1 input line / 1 output line |
Output Waveform: | Sinewave |
Surge Suppression: | Yes |
Surge Response Time: | 0 ns |
Surge Energy Rating: | 570 Joules |
Circuit Protection: | Circuit breaker |
Efficiency: | 94% |
Type: | Expandable |
Quantity: | 1 |
Run Time (Up To): | 7.7 min at full load ¦ 12 min at half load |
Recharge Time: | 3 hours |
Remote Management Interface: | RS-232, USB |
Interfaces: | 1 x EPO (emergency power off) ¦ 1 x USB ¦ 1 x RS-232 - 9 pin D-Sub (DB-9) |
Expansion Slots: | 1 (total) / 1 (free) x expansion slot |
Cables Included: | Power cable 10 ft ¦ USB cable - external ¦ Serial cable - external |
Rack Mounting Kit: | Included |
Equipment Protection Value: | 250000 US Dollars |
Features: | Audible alarm, LCD display, voltage monitoring, internal bypass, LED indicators, noise filtering, overvoltage protection, undervoltage protection, cold-start function, cooling fan, Remote Emergency Power Off (REPO), hot-swappable batteries, Energy-Saving Outlets |
Compliant Standards: | CSA, UL 1778, RoHS, FCC Part 15 A |
Software Included: | TrippLite PowerAlert |
OS Required: | Apple MacOS X, Microsoft Windows |
Service & Support: | Limited warranty - 2 years |
Min Operating Temperature: | 32 °F |
Max Operating Temperature: | 104 °F |
Humidity Range Operating: | 0 - 95% (non-condensing) |
Sound Emission: | 57 dBA |
Width: | 17.5 in |
Depth: | 19 in |
Height: | 3.5 in |
Weight: | 48.5 lbs |
Shipping Width: | 20 in |
Shipping Depth: | 24 in |
Shipping Height: | 9.5 in |
Shipping Weight: | 61.51 lbs |
COO: | CHINA |
UNSPSC Code: | 39121011 |
BRANDS | TRIPP LITE |
---|---|
UNSPSC | 39121011 |
Part# | TRP-SU2200RTXLCD2U |
MFG Part# | SU2200RTXLCD2U |
UPC | 37332168955 |
Device Type | UPS - external |
UPS Technology | On-line |
Surge Suppression | Yes |
Type | Expandable |
Efficiency | 94% |
Circuit Protection | Circuit breaker |
