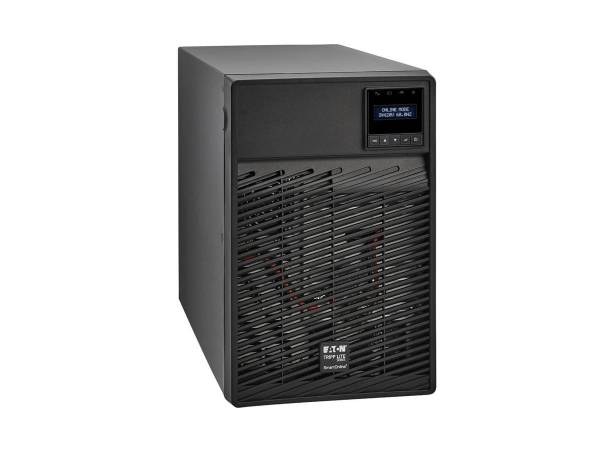

TRIPP LITE 2200VA1800W UPS SMART LCD TOWER 120V USB 5103701
SKU
5103701
CA$3,717.48
Tripp Lite series SmartOnline 1960VA 1770W 120V Double-Conversion UPS - 7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, Tower
Category: UPS
- Primary Information
Product Description: Eaton Tripp Lite Series SmartOnline 1960VA 1770W 120V Double-Conversion UPS - 7 Outlets, Extended Run, Network Card Option, LCD, USB, DB9, Tower Battery Backup - UPS - 1800 Watt - 2200 VA Device Type: UPS - external Weight: 52.91 lbs Input Voltage: AC 100/110/120/127 V Output Voltage: AC 100/110/120/127 V ± 2% Power Capacity: 1800 Watt / 2200 VA Input Connectors: 1 x power NEMA 5-20 Output connectors: 6 x power NEMA 5-15/20 ¦ 1 x power NEMA L5-20 Battery Form Factor: Plug-in module Run Time (Up To): 4.5 min at full load Networking: RS-232, USB Dimensions (WxDxH): 9 in x 19.5 in x 10.2 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - external Battery Enclosure Type: Plug-in module - Power Device
UPS Technology: On-line Input Voltage: AC 100/110/120/127 V Frequency Provided: 50/60 Hz Input Connectors: 1 x power NEMA 5-20 Power Output Connectors Details: 6 x power NEMA 5-15/20 ¦ 1 x power NEMA L5-20 Output Voltage: AC 100/110/120/127 V ± 2% - 50/60 Hz Max Electric Current: 16 A Power Capacity: 1800 Watt / 2200 VA Dataline Surge Protection: Phone line - 1 input line / 1 output line Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 570 Joules Efficiency: 97% - Battery
Voltage Provided: 48 V Run Time (Up To): 4.5 min at full load ¦ 13 min at half load Recharge Time: 3 hours - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (USB) - 4 pin USB Type B ¦ 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x EPO (emergency power off) - RJ-11 Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: Power cable 10 ft ¦ USB cable - external ¦ Serial cable - external Equipment Protection Value: 250000 US Dollars Features: Audible alarm, LCD display, overvoltage protection, overload protection, cold-start function, hot-swappable batteries Compliant Standards: CSA, NOM, UL 1778, FCC Part 15 A, EMI - Software / System Requirements
Software Included: TrippLite PowerAlert - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) Sound Emission: 50.5 dB - Dimensions & Weight
Width: 9 in Depth: 19.5 in Height: 10.2 in Weight: 52.91 lbs - Dimensions & Weight (Shipping)
Shipping Width: 13 in Shipping Depth: 24 in Shipping Height: 15.2 in Shipping Weight: 58.2 lbs - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SU2200XLCD |
| MFG Part# | SU2200XLCD |
| UPC | 37332174659 |
| Device Type | UPS - external |
| UPS Technology | On-line |
| Surge Suppression | Yes |
| Efficiency | 97% |
