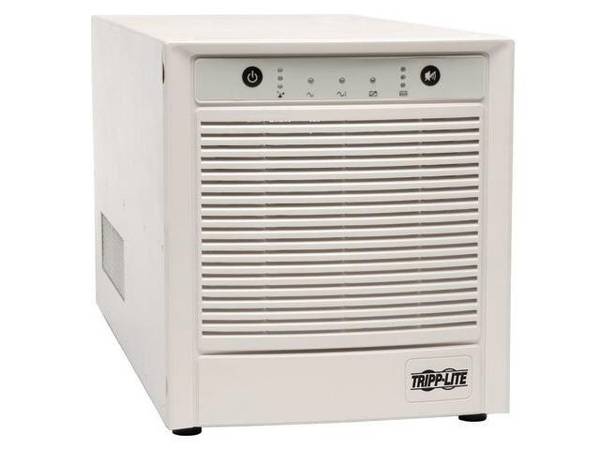

TRIPP LITE 2200VA1920W UPS SMT TWR HOSPITAL MDC AVR 4955565
SKU
4955565
CA$5,463.44
SmartPro 120V 2.2kVA 1.92kW UL 60601-1 Medical-Grade Line-Interactive UPS, Extended Run, SNMPWEBCARD Option, Full Isolation, USB, DB9 Serial
Category: UPS
- Primary Information
Product Description: Tripp Lite UPS Smart 2200VA 1920W Tower Hospital Medical AVR 120V Pure Sign Wave USB DB9 - UPS - 1920 Watt - 2200 VA Device Type: UPS - external Weight: 70.99 lbs Input Voltage: AC 120 V Output Voltage: AC 115/120 V + 8% / - 18% Power Capacity: 1920 Watt / 2200 VA Input Connectors: Power IEC 60320 C20 Output connectors: 4 x power NEMA 5-15/20 ¦ 4 x power IEC 60320 C13 Battery: Expandable Battery Form Factor: Internal Run Time (Up To): 4.4 min at full load Networking: RS-232, USB Dimensions (WxDxH): 8.9 in x 19.1 in x 9.7 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - external Battery Enclosure Type: Internal - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Frequency Provided: 60 Hz Input Connectors: Power IEC 60320 C20 Power Output Connectors Details: 4 x power NEMA 5-15/20 ¦ 4 x power IEC 60320 C13 Output Voltage: AC 115/120 V + 8% / - 18% - 60 Hz Power Capacity: 1920 Watt / 2200 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 510 Joules Circuit Protection: Circuit breaker - Battery
Type: Expandable Voltage Provided: 48 V Run Time (Up To): 4.4 min at full load ¦ 13 min at half load Recharge Time: 4.5 hours - Networking
Remote Management Interface: RS-232, USB - Expansion / Connectivity
Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x management (USB) - Miscellaneous
Cables Included: Power cable 6 ft ¦ USB cable - external ¦ Serial cable - external Features: Built-in cooling fan, audible alarm, Automatic Voltage Regulation (AVR), LED indicators, built-in isolation transformer, noise filtering, overvoltage protection, undervoltage protection, cold-start function, disconnect switch, hot-swappable batteries Compliant Standards: CSA, UL 1778, UL 60601-1, FCC Part 15 A - Software / System Requirements
Software Included: TrippLite PowerAlert - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) - Dimensions & Weight
Width: 8.9 in Depth: 19.1 in Height: 9.7 in Weight: 70.99 lbs - Dimensions & Weight (Shipping)
Shipping Width: 14.2 in Shipping Depth: 23.4 in Shipping Height: 15.9 in - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMART2500XLHG |
| MFG Part# | SMART2500XLHG |
| UPC | 37332168283 |
| Device Type | UPS - external |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Type | Expandable |
| Circuit Protection | Circuit breaker |
