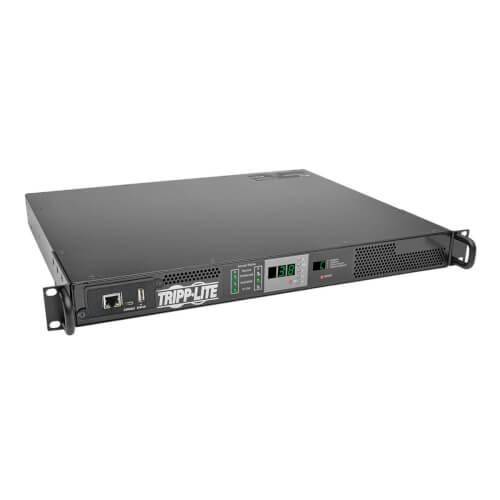

TRIPP LITE 3.3/3.8KW SINGLE-PHASE ATS/MONITORED PDU 5555126
SKU
5555126
CA$2,257.32
3.3/3.8kW Single-Phase 208/240V ATS/Monitored PDU with LX Platform Interface, L6-20R Outlet, 2 L6-20P Inputs, 1U Rack-Mount
Category: Power Distribution Units
- Primary Information
Product Description: Eaton Tripp Lite Series PDU Monitored Horizontal 3.3/3.8KW 208/240V ATS L6-20R 2 L6-20P 1U - power distribution unit - 3.8 kW Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 19" - 1U Weight: 15.21 lbs Input Wiring: 1-phase Input Voltage: AC 200/208/220/230/240 V Output Voltage: AC 200/208/220/230/240 V Power Capacity: 3.8 kW Input Connectors: 2 x power NEMA L6-20 Output connectors: 1 x power NEMA L6-20 Networking: Ethernet 10/100 Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH Dimensions (WxDxH): 16.9 in x 14 in x 1.7 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 1U Rack Size: 19" Cord Length: 10 ft - Power Device
Input Voltage: AC 200/208/220/230/240 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Input Connectors: 2 x power NEMA L6-20 Power Output Connectors Details: 1 x power NEMA L6-20 Output Voltage: AC 200/208/220/230/240 V 50/60 Hz Max Electric Current: 20 A Power Capacity: 3.8 kW - Networking
Remote Management Interface: Ethernet 10/100 Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH - Expansion / Connectivity
Interfaces: 1 x management (Ethernet) - RJ-45 - Miscellaneous
Cables Included: 2 x power cable - integrated - 10 ft Rack Mounting Kit: Included Features: LED display, voltage monitoring, current meter, Automatic Transfer Switch (ATS), AC frequency monitoring, real power meter, power factor meter Compliant Standards: FCC Class A certified, NOM, RoHS, UL 60950-1, CSA 22.2 No. 60950-1 - Software / System Requirements
Software Included: TrippLite PowerAlert - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 16.9 in Depth: 14 in Height: 1.7 in Weight: 15.21 lbs - Dimensions & Weight (Shipping)
Shipping Width: 21.7 in Shipping Depth: 20.7 in Shipping Height: 7.5 in Shipping Weight: 16.69 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDUMNH20HVAT |
| MFG Part# | PDUMNH20HVAT |
| UPC | 37332187932 |
| Device Type | Power distribution unit - rack-mountable |
| Remote Management Protocol | HTTP, HTTPS, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet |
