TRIPP LITE 3-PHASE METERED PDU 22.1KW 42 220/230V 5410862
SKU
5410862
CA$2,168.40

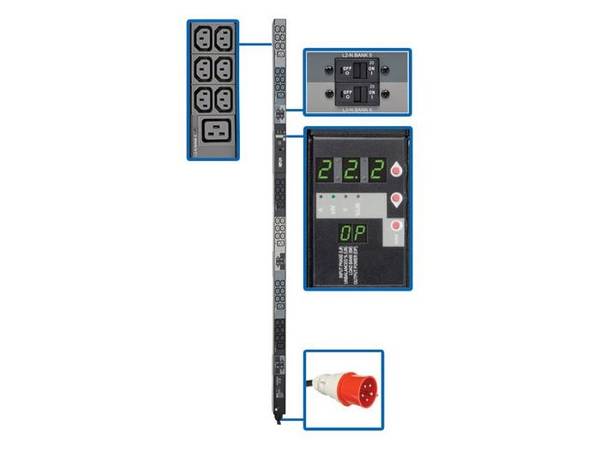

3-Phase Local Metered PDU, 23kW, 42 208-240V outlets (36 C13, 6 C19), IEC309 32A Red (3P+N+E) 360-415V Input, 0u vertical, TAA - Visual meter reports output amps per bank, total kW and input voltage - Local metered 22.2kW 3 Phase 360-415V input 208-240V output PDU - 0U Vertical Rackmount with Toolless button-mount installation
Category: Power Distribution Units
- Primary Information
Product Description: Eaton Tripp Lite Series PDU 3-Phase Metered 220/230V 22.2kW 32A IEC309 36 C13; 6 C19 0U - vertical rackmount - power distribution unit - 22.1 kW - TAA Compliant Device Type: Power distribution unit - rack-mountable Rack Size: 0U Weight: 14.31 lbs Input Wiring: 3-phase Input Voltage: AC 380/400 V Output Voltage: AC 220/230 V Power Capacity: 22.1 kW Input Connectors: 1 x power IEC 60309 32A Output connectors: 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 TAA Compliant: TAA Compliant Dimensions (WxDxH): 2.2 in x 2.5 in x 70 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U - Power Device
Input Voltage: AC 380/400 V Frequency Provided: 50/60 Hz Input Wiring: 3-phase Input Connectors: 1 x power IEC 60309 32A Power Output Connectors Details: 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 Output Voltage: AC 220/230 V 50/60 Hz Max Electric Current: 32 A Power Capacity: 22.1 kW - Miscellaneous
Cables Included: Power cable 6 ft Rack Mounting Kit: Included Features: LED display, current meter, vertical orientation Compliant Standards: NOM, RoHS, UL 60950-1, EN 60950-1 TAA Compliant: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 0 - 95% (non-condensing) - Dimensions & Weight
Width: 2.2 in Depth: 2.5 in Height: 70 in Weight: 14.31 lbs - Dimensions & Weight (Shipping)
Shipping Width: 5.9 in Shipping Depth: 6.9 in Shipping Height: 76.6 in Shipping Weight: 20.5 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDU3XMV6G32 |
| MFG Part# | PDU3XMV6G32 |
| UPC | 37332182753 |
| Device Type | Power distribution unit - rack-mountable |
