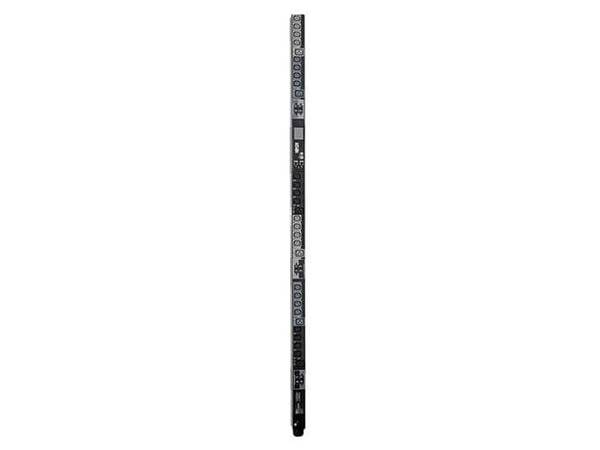

TRIPP LITE 3-PHASE PDU SWITCHED 220-240V 24C13 6C19 6079171
SKU
6079171
CA$3,985.80
28.8kW 3-Phase Switched PDU, LX Platform Interface, 220/230/240V Outlets (24 C13/6 C19), LCD, Hardwire 380/400/415V Input, 0U, TAA
Category: Power Distribution Units
- Primary Information
Product Description: Tripp Lite 28.8kW 3-Phase Switched PDU, LX Platform Interface, 220/230/240V Outlets (24 C13/6 C19), LCD, Hardwire 380/400/415V Input, 0U, TAA - power distribution unit - 28.8 kW - TAA Compliant Device Type: Power distribution unit - rack-mountable Cord Length: 6 ft Rack Size: 0U Weight: 13.49 lbs Input Wiring: 3-phase Input Voltage: AC 380/400 V Output Voltage: AC 220/230/240 V Power Capacity: 28.8 kW Input Connectors: 1 x hardwire Output connectors: 24 x power IEC 60320 C13 - 230 V ¦ 6 x power IEC 60320 C19 - 230 V Networking: Ethernet 10/100, USB Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP Included Accessories: 30 plug-lock insert sleeves TAA Compliant: TAA Compliant Dimensions (WxDxH): 2.2 in x 2.5 in x 70 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 0U Cord Length: 6 ft - Power Device
Input Voltage: AC 380/400 V Frequency Provided: 50/60 Hz Input Wiring: 3-phase Input Connectors: 1 x hardwire Power Output Connectors Details: 24 x power IEC 60320 C13 - 230 V ¦ 6 x power IEC 60320 C19 - 230 V Output Voltage: AC 220/230/240 V 50/60 Hz Max Electric Current: 40 A Power Capacity: 28.8 kW Circuit Protection: Circuit breaker - Networking
Remote Management Interface: Ethernet 10/100, USB Remote Management Protocol: SNMP 1, SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, SMTP - Expansion / Connectivity
Interfaces: 1 x management (Fast Ethernet) - RJ-45 ¦ 2 x USB - 4 pin USB Type A ¦ 1 x USB - 4 pin USB Type B ¦ 1 x management - RJ-45 - Miscellaneous
Included Accessories: 30 plug-lock insert sleeves Cables Included: Power cable - integrated - 6 ft ¦ Management cable - external Rack Mounting Kit: Included Features: LED indicator, vertical orientation, voltage monitoring, current meter, overload protection, digital power meter, email alerts support, firmware upgradable, touch screen LCD display, energy meter Compliant Standards: FCC Class A certified, NOM, RoHS, EN 60950-1, UL 60950-1:2007, IEC 60950-1:2005 + A1:2009, CAN/CSA-C22.2 No. 60950-1-07+A1:2011 TAA Compliant: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 122 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 2.2 in Depth: 2.5 in Height: 70 in Weight: 13.49 lbs - Dimensions & Weight (Shipping)
Shipping Width: 9.7 in Shipping Depth: 75.9 in Shipping Height: 6.9 in Shipping Weight: 18.3 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDU3XEVSRHWB |
| MFG Part# | PDU3XEVSRHWB |
| UPC | 37332195418 |
| Device Type | Power distribution unit - rack-mountable |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | HTTP, HTTPS, SMTP, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet |
