TRIPP LITE 3000VA2250W SMT RKMT AVR120V DB9SNMP2URM 4948902
SKU
4948902
CA$4,375.80

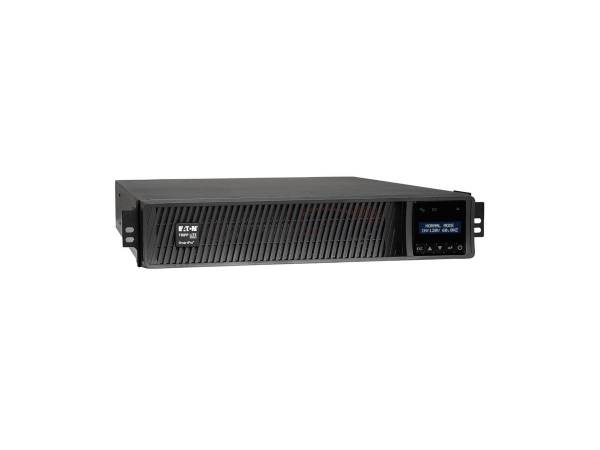

SmartPro 120V 3kVA 2.25kW Line Interactive Sine Wave UPS, 2U Rack/Tower, Pre-installed WEBCARDLX Network Interface, LCD Display, USB, DB9 Serial
Category: UPS
- Primary Information
Product Description: Eaton Tripp Lite Series SmartPro 3000VA 3000W 120V Line-Interactive Sine Wave UPS - 7 Outlets, Network Card Included, LCD, USB, DB9, 2U Rack/Tower Battery Backup - UPS - 3 kW - 3000 VA Device Type: UPS - external Rack Size: 19" - 2U Weight: 62.83 lbs Input Voltage: AC 120 V Output Voltage: AC 120 V ± 5% Power Capacity: 3 kW / 3000 VA Input Connectors: 1 x power NEMA L5-30 Output connectors: 1 x power NEMA L5-30 ¦ 8 x power NEMA 5-15/20 Battery Form Factor: Plug-in module Run Time (Up To): 3.5 min at full load Networking: Ethernet, RS-232, USB Remote Management Protocol: SNMP Dimensions (WxDxH): 17.5 in x 19.5 in x 3.5 in Manufacturer Warranty: 3-year warranty with product registration - General
Device Type: UPS - external Battery Enclosure Type: Plug-in module Height (Rack Units): 2U Rack Size: 19" - Power Device
UPS Technology: Line interactive Input Voltage: AC 120 V Frequency Provided: 60 Hz Frequency Required: 60 Hz Input Connectors: 1 x power NEMA L5-30 Power Output Connectors Details: 1 x power NEMA L5-30 ¦ 8 x power NEMA 5-15/20 Output Voltage: AC 120 V ± 5% - 60 Hz Power Capacity: 3 kW / 3000 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Energy Rating: 570 Joules Circuit Protection: Circuit breaker Efficiency: 95%+ - Battery
Voltage Provided: 48 V Run Time (Up To): 3.5 min at full load ¦ 10 min at half load Recharge Time: 4.5 hours - Networking
Remote Management Interface: Ethernet, RS-232, USB Remote Management Protocol: SNMP - Expansion / Connectivity
Interfaces: 1 x management (Ethernet) - RJ-45 ¦ 1 x management (USB) ¦ 1 x management (RS-232) Expansion Slots: 1 (total) / 0 (free) x expansion slot - Miscellaneous
Cables Included: Power cable 10 ft ¦ USB cable - external ¦ Serial cable - external ¦ EPO cable - external Rack Mounting Kit: Included Equipment Protection Value: 250000 US Dollars Features: Audible alarm, LCD display, Automatic Voltage Regulation (AVR), noise filtering, overvoltage protection, undervoltage protection, cold-start function, cooling fan, hot-swappable batteries Compliant Standards: CSA, NOM, UL 1778, FCC Part 15 A - Software / System Requirements
Software Included: TrippLite PowerAlert - Manufacturer Warranty
Service & Support: Limited warranty - 3 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) - Dimensions & Weight
Width: 17.5 in Depth: 19.5 in Height: 3.5 in Weight: 62.83 lbs - Dimensions & Weight (Shipping)
Shipping Width: 24.2 in Shipping Depth: 24.4 in Shipping Height: 7.9 in Shipping Weight: 73.85 lbs - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMART3000RM2UN |
| MFG Part# | SMART3000RM2UN |
| UPC | 37332177902 |
| Device Type | UPS - external |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Efficiency | 95%+ |
| Circuit Protection | Circuit breaker |
| Remote Management Protocol | SNMP |
