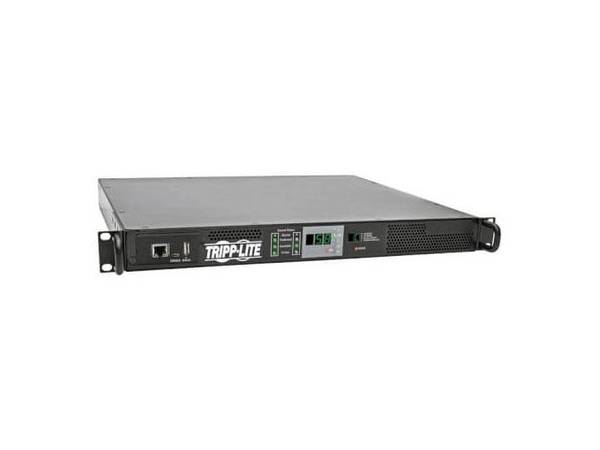

TRIPP LITE 5.8K SINGLE-PHASE ATS/MONITORED 208/240V 5536989

SKU
5536989
CA$2,730.10
Tripp Lite series 5.8kW Single-Phase Monitored Automatic Transfer Switch PDU, 2 200-240V 30A L6-30P Inputs, 1 L6-30R Outlet, 1U





buy now pay later
  • Primary Information
    Product Description: Eaton Tripp Lite Series PDU Monitored Horizontal 5.8kw 208/240V L6-30R 2 L6-30P ATS 1URM - power monitoring unit - 5.8 kW - TAA Compliant
    Device Type: Power monitoring unit - rack-mountable
    Rack Size: 19" - 1U
    Weight: 15.43 lbs
    Input Wiring: 1-phase
    Input Voltage: AC 200/208/220/230/240 V
    Output Voltage: AC 200/208/220/230/240 V
    Power Capacity: 5.8 kW
    Input Connectors: 2 x power NEMA L6-30
    Output connectors: 1 x power NEMA L6-30
    Networking: Ethernet
    Remote Management Protocol: HTTP, HTTPS, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet, TFTP
    TAA Compliant: TAA Compliant
    Dimensions (WxDxH): 16.9 in x 14 in x 1.7 in
    Manufacturer Warranty: 2-year warranty
  • General
    Device Type: Power monitoring unit - rack-mountable
    Height (Rack Units): 1U
    Rack Size: 19"
  • Power Device
    Input Voltage: AC 200/208/220/230/240 V
    Frequency Provided: 50/60 Hz
    Input Wiring: 1-phase
    Input Connectors: 2 x power NEMA L6-30
    Power Output Connectors Details: 1 x power NEMA L6-30
    Output Voltage: AC 200/208/220/230/240 V 50/60 Hz
    Max Electric Current: 30 A
    Power Capacity: 5.8 kW
  • Networking
    Remote Management Interface: Ethernet
    Remote Management Protocol: HTTP, HTTPS, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet, TFTP
  • Expansion / Connectivity
    Interfaces: 1 x management (Ethernet) - RJ-45
  • Miscellaneous
    Features: LCD display, AC frequency monitoring, current meter, input voltage LCD meter, power factor meter
    Compliant Standards: FCC Class A certified, NOM, RoHS, UL 60950-1, GSA
    TAA Compliant: Yes
  • Manufacturer Warranty
    Service & Support: Limited warranty - 2 years
  • Environmental Parameters
    Min Operating Temperature: 32 °F
    Max Operating Temperature: 122 °F
    Humidity Range Operating: 5 - 95% (non-condensing)
  • Dimensions & Weight
    Width: 16.9 in
    Depth: 14 in
    Height: 1.7 in
    Weight: 15.43 lbs
  • Dimensions & Weight (Shipping)
    Shipping Width: 21.7 in
    Shipping Depth: 20.7 in
    Shipping Height: 7.5 in
    Shipping Weight: 18.52 lbs
  • Special Feature
    COO: Inquire
    TAA compliance: Inquire
  • UNSPSC Code
    UNSPSC Code: 39121017
BRANDSTRIPP LITE
UNSPSC39121017
Part#TRP-PDUMNH30HVAT
MFG Part#PDUMNH30HVAT
UPC37332184917
Device TypePower monitoring unit - rack-mountable
Remote Management ProtocolHTTP, HTTPS, SNMP 1, SNMP 2, SNMP 3, SSH, Telnet, TFTP
