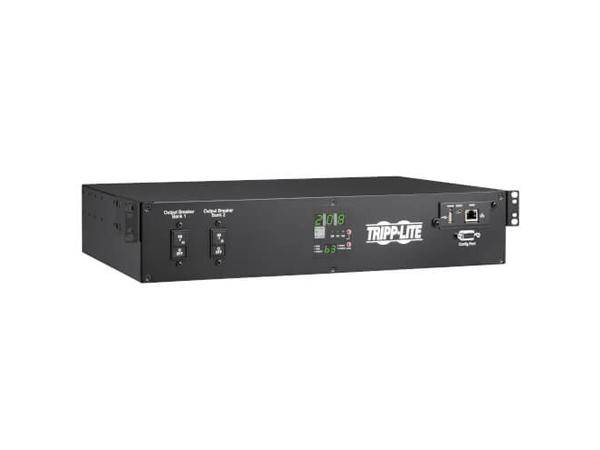

TRIPP LITE 5.8KW 208/240V SINGLE-PHASE ATS/MONITORED PDU - 16 C13, 2 C19 & 1 L6-30R OUTLETS, DUAL L6-30P INPUTS, 10 FT. CORDS, 2U, TAA 6887105
SKU
6887105
CA$2,725.32
PDUMNH30HVAT2 - Power Distribution Unit - 2U - 200; 208; 240V - 5.8KW - (16) C13; (2) C19; (1) L6-30R - 30A - 2-year limited warranty - Built-in HTML5-based LX Platform interface allows you 24/7 remote access. Enables redundant A/B power option for single-corded network devices
Category: Power Distribution Units
- Primary Information
Product Description: Eaton Tripp Lite Series 5.8kW 208/240V Single-Phase ATS/Monitored PDU - 16 C13, 2 C19 & 1 L6-30R Outlets, Dual L6-30P Inputs, 10 ft. Cords, 2U, TAA - power distribution unit - 5.8 kW - TAA Compliant Device Type: Power distribution unit - rack-mountable Cord Length: 10 ft Rack Size: 16" - 2U Weight: 13.69 lbs Input Wiring: 1-phase Input Voltage: AC 200/208/240 V Output Voltage: AC 200/208/240 V Power Capacity: 5.8 kW Input Connectors: 2 x power NEMA L6-30P Output connectors: 16 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 ¦ 1 x power NEMA L6-30R Networking: Ethernet 10/100 Remote Management Protocol: Telnet, SSH, SNMP Included Accessories: Cable ties, plug retention sleeves TAA Compliant: TAA Compliant Dimensions (WxDxH): 17.5 in x 12.5 in x 3.5 in Manufacturer Warranty: 2-year warranty - General
Device Type: Power distribution unit - rack-mountable Height (Rack Units): 2U Rack Size: 16" Cord Length: 10 ft - Power Device
Input Voltage: AC 200/208/240 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Input Connectors: 2 x power NEMA L6-30P Power Output Connectors Details: 16 x power IEC 60320 C13 ¦ 2 x power IEC 60320 C19 ¦ 1 x power NEMA L6-30R Output Voltage: AC 200/208/240 V 50/60 Hz Max Electric Current: 30 A Power Capacity: 5.8 kW - Networking
Remote Management Interface: Ethernet 10/100 Remote Management Protocol: Telnet, SSH, SNMP - Expansion / Connectivity
Interfaces: 1 x management (USB) - Micro-USB Type B ¦ 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (USB) - 4 pin USB Type A ¦ 1 x video - 9 pin D-Sub (DB-9) - Miscellaneous
Included Accessories: Cable ties, plug retention sleeves Cables Included: 2 x power cable (NEMA L6-30P) - integrated - 10 ft ¦ Micro-USB to USB cable Rack Mounting Kit: Included Features: Horizontal orientation, auto-switching, SNMP support, LED display, overload protection, current meter, built-in LX platform interface, Automatic Transfer Switch (ATS) Compliant Standards: UL 60950-1, FCC Part 15 A, NOM, RoHS TAA Compliant: Yes - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 5 - 95% (non-condensing) - Dimensions & Weight
Width: 17.5 in Depth: 12.5 in Height: 3.5 in Weight: 13.69 lbs - Dimensions & Weight (Shipping)
Shipping Width: 20.2 in Shipping Depth: 16.7 in Shipping Height: 7.8 in Shipping Weight: 17.31 lbs - Special Feature
COO: Inquire TAA compliance: Inquire - UNSPSC Code
UNSPSC Code: 39121017
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121017 |
| Part# | TRP-PDUMNH30HVAT2 |
| MFG Part# | PDUMNH30HVAT2 |
| UPC | 37332261434 |
| Device Type | Power distribution unit - rack-mountable |
| Remote Management Protocol | SNMP, SSH, Telnet |
