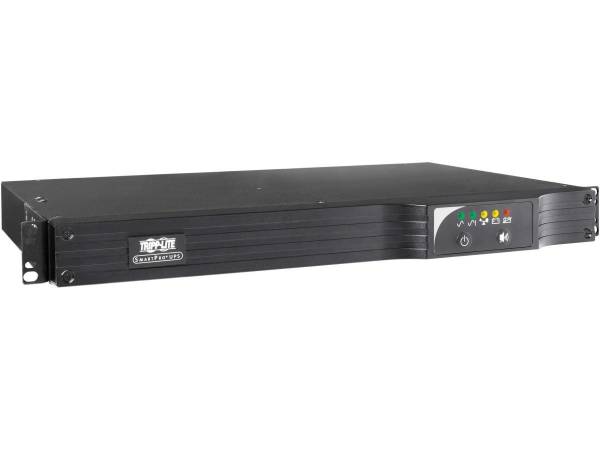

TRIPP LITE 500VA INTL UPS SMART PRO RACK/TOWER 230 4163829
SKU
4163829
CA$715.06
SmartPro 230V 500VA 300W Line-Interactive UPS, 1U Rack/Tower, Network Card Options, USB, DB9 Serial
Category: UPS
- Primary Information
Product Description: Tripp Lite SmartPro SmartPro 230V 500VA 300W Line-Interactive UPS, 1U Rack/Tower, Network Card Options, USB, DB9 Serial - UPS - 300 Watt - 500 VA Device Type: UPS - rack-mountable Rack Size: 1U Weight: 17.99 lbs Input Wiring: 1-phase Input Voltage: AC 220/230/240 V Output Voltage: AC 230 V Power Capacity: 300 Watt / 500 VA Input Connectors: 1 x power IEC 60320 C14 Output connectors: 6 x power IEC 60320 C13 Battery Form Factor: Plug-in module Run Time (Up To): 3.2 min at full load Dimensions (WxDxH): 17.3 in x 11.6 in x 1.7 in Manufacturer Warranty: 2-year warranty - General
Device Type: UPS - rack-mountable Battery Enclosure Type: Plug-in module Height (Rack Units): 1U - Power Device
UPS Technology: Line interactive Input Voltage: AC 220/230/240 V Frequency Provided: 50/60 Hz Input Wiring: 1-phase Frequency Required: 50/60 Hz Input Connectors: 1 x power IEC 60320 C14 Power Output Connectors Details: 6 x power IEC 60320 C13 Output Voltage: AC 230 V 50/60 Hz Power Capacity: 300 Watt / 500 VA Output Waveform: Sinewave Surge Suppression: Yes Surge Response Time: 2 ms Surge Energy Rating: 480 Joules Circuit Protection: Circuit breaker - Battery
Run Time (Up To): 3.2 min at full load Recharge Time: 4 hours - Expansion / Connectivity
Interfaces: 1 x management (RS-232) - 9 pin D-Sub (DB-9) ¦ 1 x USB - 4 pin USB Type B Expansion Slots: 1 (total) / 1 (free) x expansion slot - Miscellaneous
Cables Included: 2 x power cable 6 ft Rack Mounting Kit: Included - Software / System Requirements
Software Included: TrippLite PowerAlert - Manufacturer Warranty
Service & Support: Limited warranty - 2 years - Environmental Parameters
Min Operating Temperature: 32 °F Max Operating Temperature: 104 °F Humidity Range Operating: 0 - 95% (non-condensing) - Dimensions & Weight
Width: 17.3 in Depth: 11.6 in Height: 1.7 in Weight: 17.99 lbs - Dimensions & Weight (Shipping)
Shipping Width: 22.5 in Shipping Depth: 16 in Shipping Height: 5 in Shipping Weight: 20.94 lbs - Special Feature
COO: CHINA - UNSPSC Code
UNSPSC Code: 39121011
| BRANDS | TRIPP LITE |
|---|---|
| UNSPSC | 39121011 |
| Part# | TRP-SMX500RT1U |
| MFG Part# | SMX500RT1U |
| UPC | 37332119254 |
| Device Type | UPS - rack-mountable |
| UPS Technology | Line interactive |
| Surge Suppression | Yes |
| Circuit Protection | Circuit breaker |
