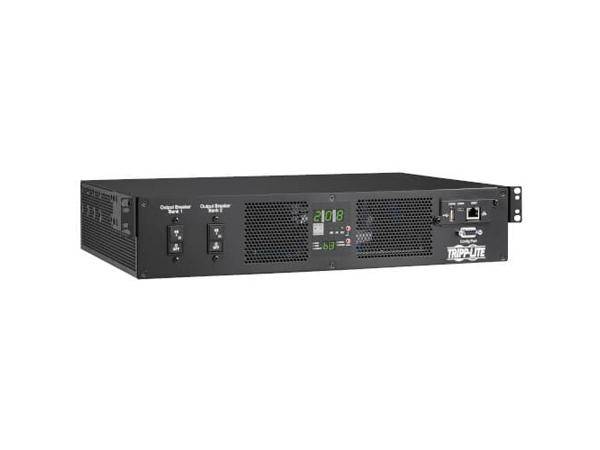

Product Description: | Tripp Lite 7.4kW 200-240V Single-Phase ATS/Monitored PDU - 16 C13 & 2 C19 Outlets, Dual IEC 309 32A Blue Inputs, 3 m Cords, 2U, TAA - power distribution unit - 7.4 kW - TAA Compliant |
Device Type: | Power distribution unit - rack-mountable |
Cord Length: | 10 ft |
Rack Size: | 2U |
Weight: | 13.69 lbs |
Input Wiring: | 1-phase |
Output Voltage: | AC 200-240 V |
Power Capacity: | 7.4 kW |
Input Connectors: | 2 x power IEC 60309 2P+E |
Output connectors: | 16 x power IEC 60320 C13 10 A ¦ 2 x power IEC 60320 C19 16 A |
Remote Management Protocol: | HTTP, SNMP, HTTPS, Telnet, SSH, CLI |
Included Accessories: | Cable ties, installable plug-retention sleeves |
TAA Compliant: | TAA Compliant |
Dimensions (WxDxH): | 17.5 in x 12.5 in x 3.5 in |
Manufacturer Warranty: | 2-year warranty |
Device Type: | Power distribution unit - rack-mountable |
Height (Rack Units): | 2U |
Cord Length: | 10 ft |
Frequency Provided: | 50/60 Hz |
Input Wiring: | 1-phase |
Input Connectors: | 2 x power IEC 60309 2P+E |
Power Output Connectors Details: | 16 x power IEC 60320 C13 10 A ¦ 2 x power IEC 60320 C19 16 A |
Output Voltage: | AC 200-240 V 50/60 Hz |
Max Electric Current: | 16 A |
Power Capacity: | 7.4 kW |
Circuit Protection: | Circuit breaker |
Remote Management Protocol: | HTTP, SNMP, HTTPS, Telnet, SSH, CLI |
Interfaces: | 1 x management (Fast Ethernet) - RJ-45 ¦ 1 x management (USB) - 5 pin Micro-USB Type B ¦ 1 x USB ¦ 1 x serial - 9 pin D-Sub (DB-9) |
Included Accessories: | Cable ties, installable plug-retention sleeves |
Cables Included: | Power cable 10 ft ¦ USB-A to Micro-USB Type B cable - external ¦ 2 x power cable 10 ft |
Rack Mounting Kit: | Included |
Features: | Automatic Transfer Switch (ATS), monitored, overload protection |
Compliant Standards: | RoHS, IEC 62368-1, FCC Part 15 A, RETIE |
TAA Compliant: | Yes |
Service & Support: | Limited warranty - 2 years |
Min Operating Temperature: | 32 °F |
Max Operating Temperature: | 104 °F |
Humidity Range Operating: | 5 - 95% (non-condensing) |
Width: | 17.5 in |
Depth: | 12.5 in |
Height: | 3.5 in |
Weight: | 13.69 lbs |
Shipping Width: | 16.7 in |
Shipping Depth: | 19.3 in |
Shipping Height: | 7.7 in |
COO: | Inquire |
TAA compliance: | Inquire |
UNSPSC Code: | 39121017 |
BRANDS | TRIPP LITE |
---|---|
UNSPSC | 39121017 |
Part# | TRP-PDUMNH32HVAT2 |
MFG Part# | PDUMNH32HVAT2 |
UPC | 37332261441 |
Device Type | Power distribution unit - rack-mountable |
Circuit Protection | Circuit breaker |
Remote Management Protocol | CLI, HTTP, HTTPS, SNMP, SSH, Telnet |
